Compressor Control Valve Assembly: Locations

Powertrain Component Views

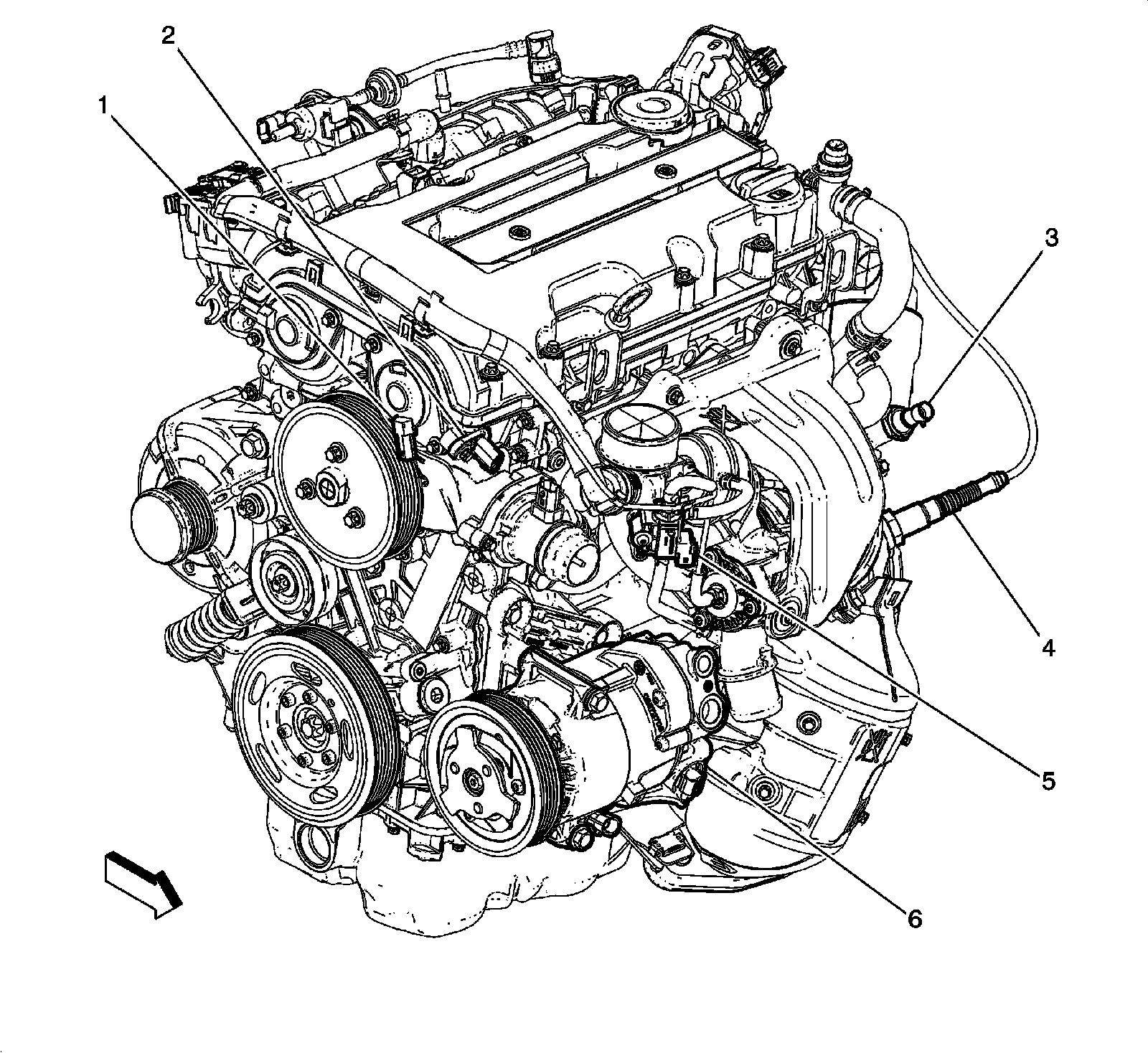

Engine Components - Right Front (LUJ)




1 - Q6E Camshaft Position Actuator Solenoid Valve - Exhaust
2 - B23E Camshaft Position Sensor - Exhaust
3 - B37 Engine Oil Pressure Switch
4 - B52A Heated Oxygen Sensor 1
5 - Q42 Turbocharger Wastegate Solenoid Valve
6 - Q46 A/C Compressor Solenoid Valve
