Engine Stop/Start Mode Control Switch Replacement

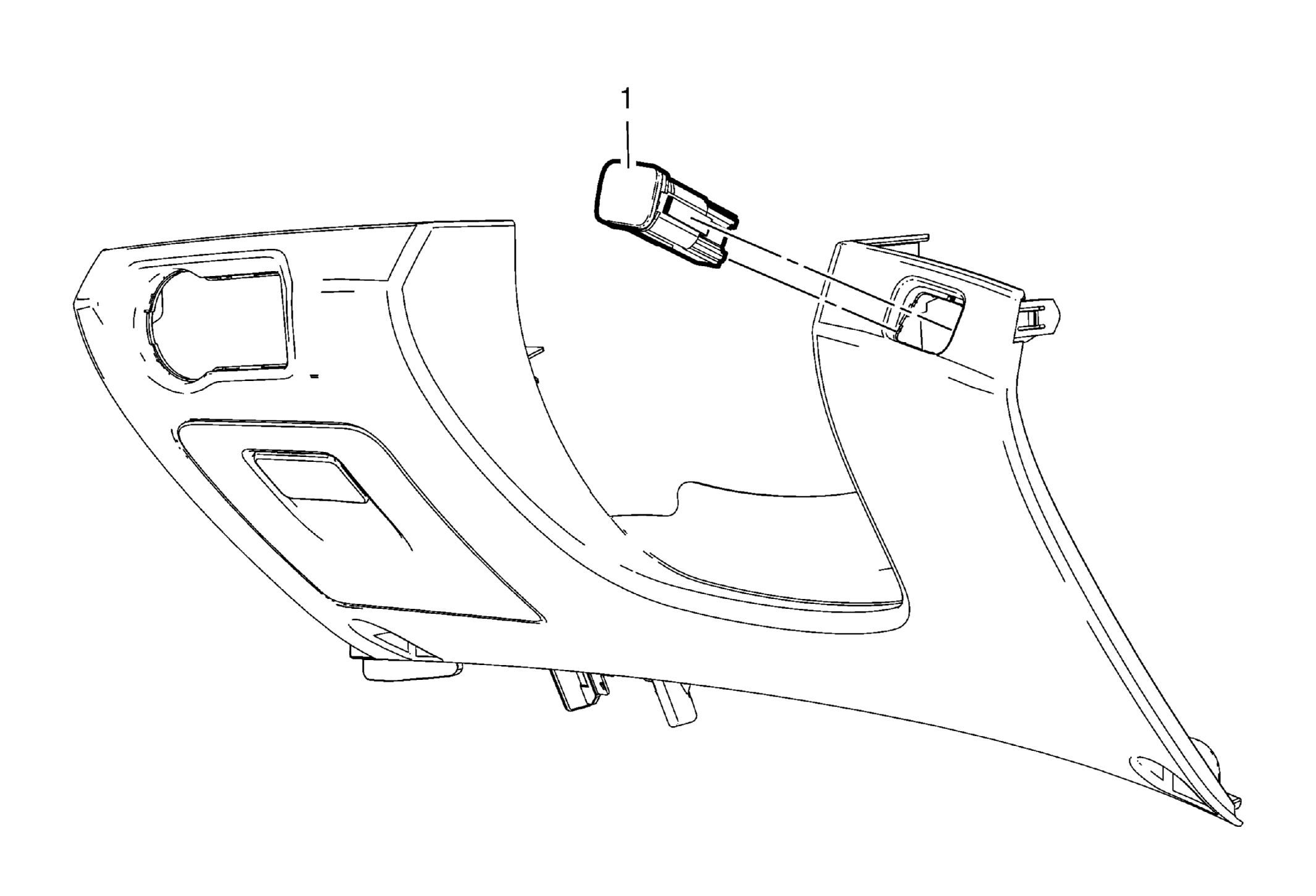

Fig 1: Engine Stop/Start Mode Control Switch

Courtesy of GENERAL MOTORS COMPANY

Engine Stop/Start Mode Control Switch Replacement

Callout	Component Name
Preliminary Procedure  Remove the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement (without Knee Airbag) , Instrument Panel Lower Trim Pad Cover Replacement (with Knee Airbag) .
1	Engine Stop/Start Mode Control Switch Procedure  Unlock the retaining tabs.
