Engine Coolant Temperature Sensor Replacement (Water Outlet)

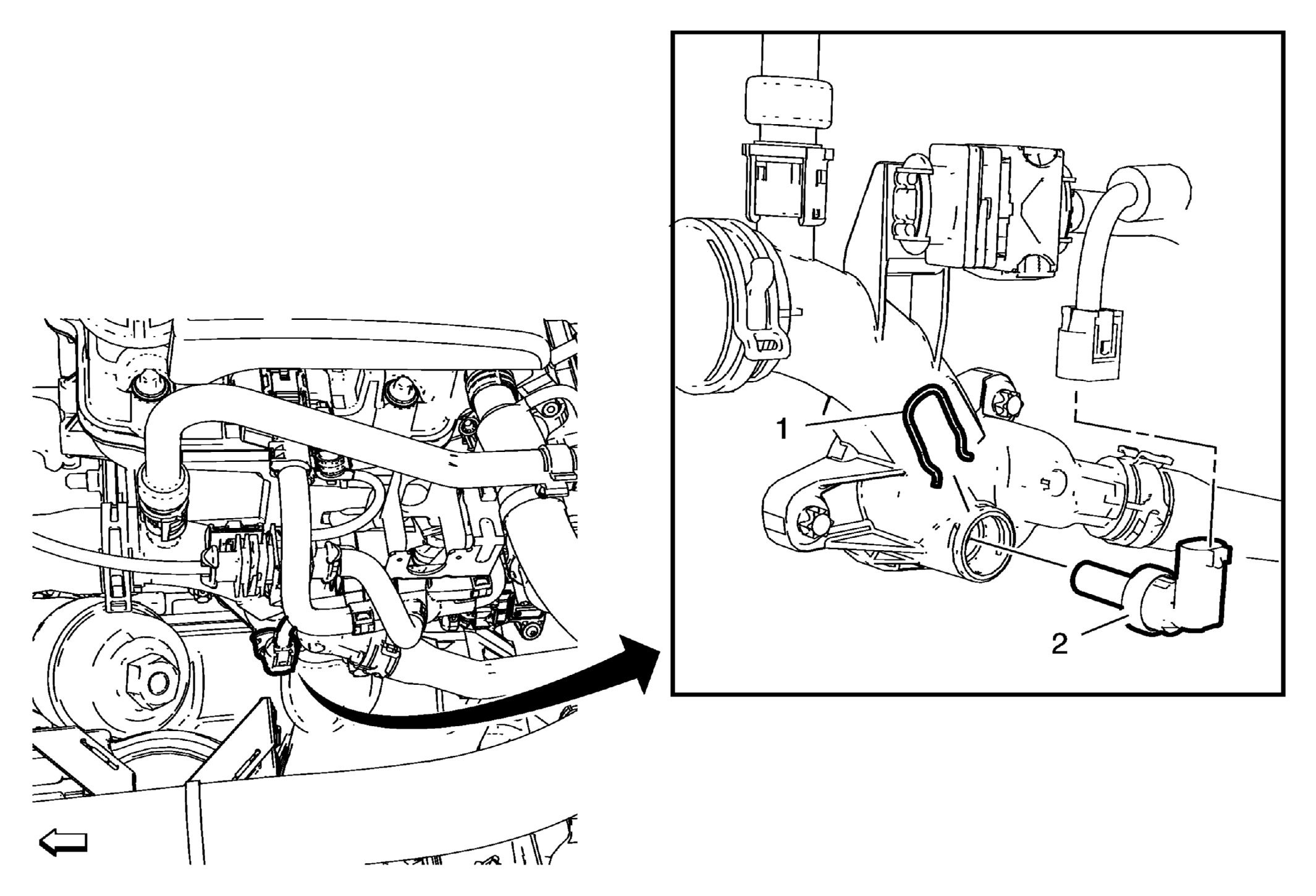

Fig 1: Engine Coolant Temperature Sensor (Water Outlet)
GM2191802Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Temperature Sensor Replacement (Water Outlet)

Callout Component Name
WARNING:

Allow sufficient time for the engine to cool before removing the ECT sensor. A hot engine may cause an excessive coolant loss or a personal injury.

Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill) , Cooling System Draining and Filling (Static Fill) .
1 Engine Coolant Temperature Sensor Retainer Clip
2 Engine Coolant Temperature Sensor
Procedure
Disconnect electrical connector.
