Engine Oil Pressure Indicator Switch Replacement

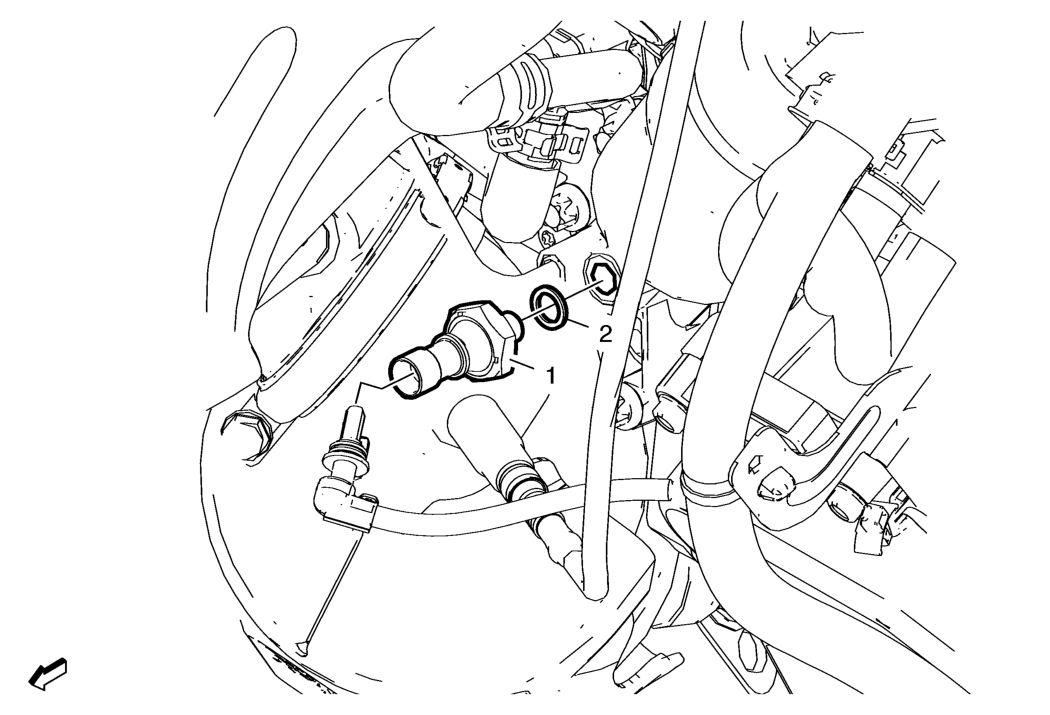

Fig 1: Engine Oil Pressure Indicator Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Engine Oil Pressure Indicator Switch CAUTION: Refer to Fastener Caution . Procedure Place collecting basin underneath. Disconnect the electrical connector. Check engine oil level after replacement. Tighten 20 N.m (15 lb ft)
2	Engine Oil Pressure Indicator Switch Seal Ring

Callout

Component Name

Engine Oil Pressure Indicator Switch

CAUTION:

Refer to Fastener Caution .

Procedure

Place collecting basin underneath.
Disconnect the electrical connector.
Check engine oil level after replacement.

Tighten
20 N.m (15 lb ft)

Engine Oil Pressure Indicator Switch Seal Ring
