Knock Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY Knock Sensor Replacement

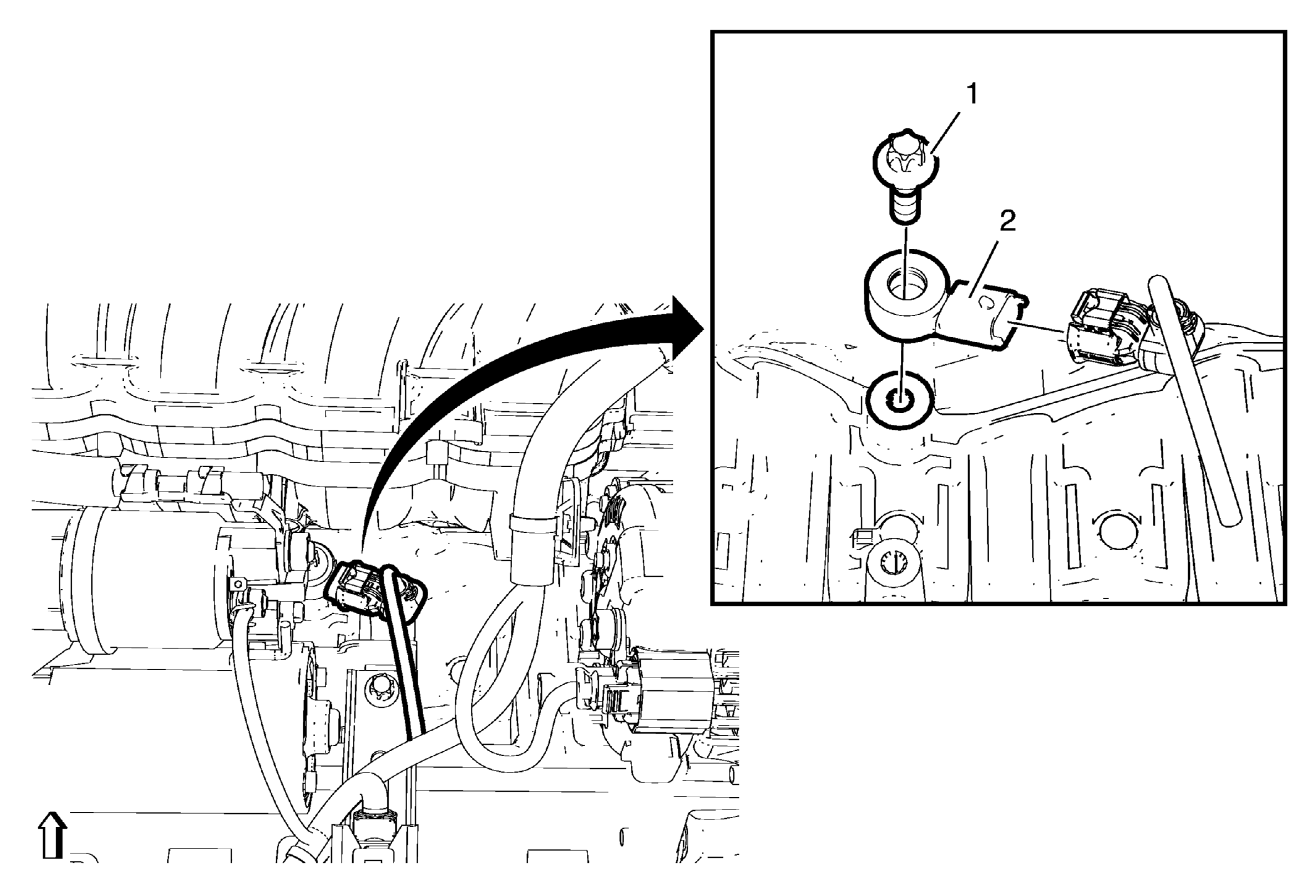

| Callout |
Component Name |
|
Preliminary Procedures
- Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection
.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
|
| 1 |
Knock Sensor Bolt
Procedure
- Disconnect the electrical connector.
- DO NOT mistake the knock sensor electrical connector with the generator electrical connector.
Tighten
25 N.m (18 lb ft) |
| 2 |
Knock Sensor |
