Module Power, Grounds And Subsystem References (1 of 4)

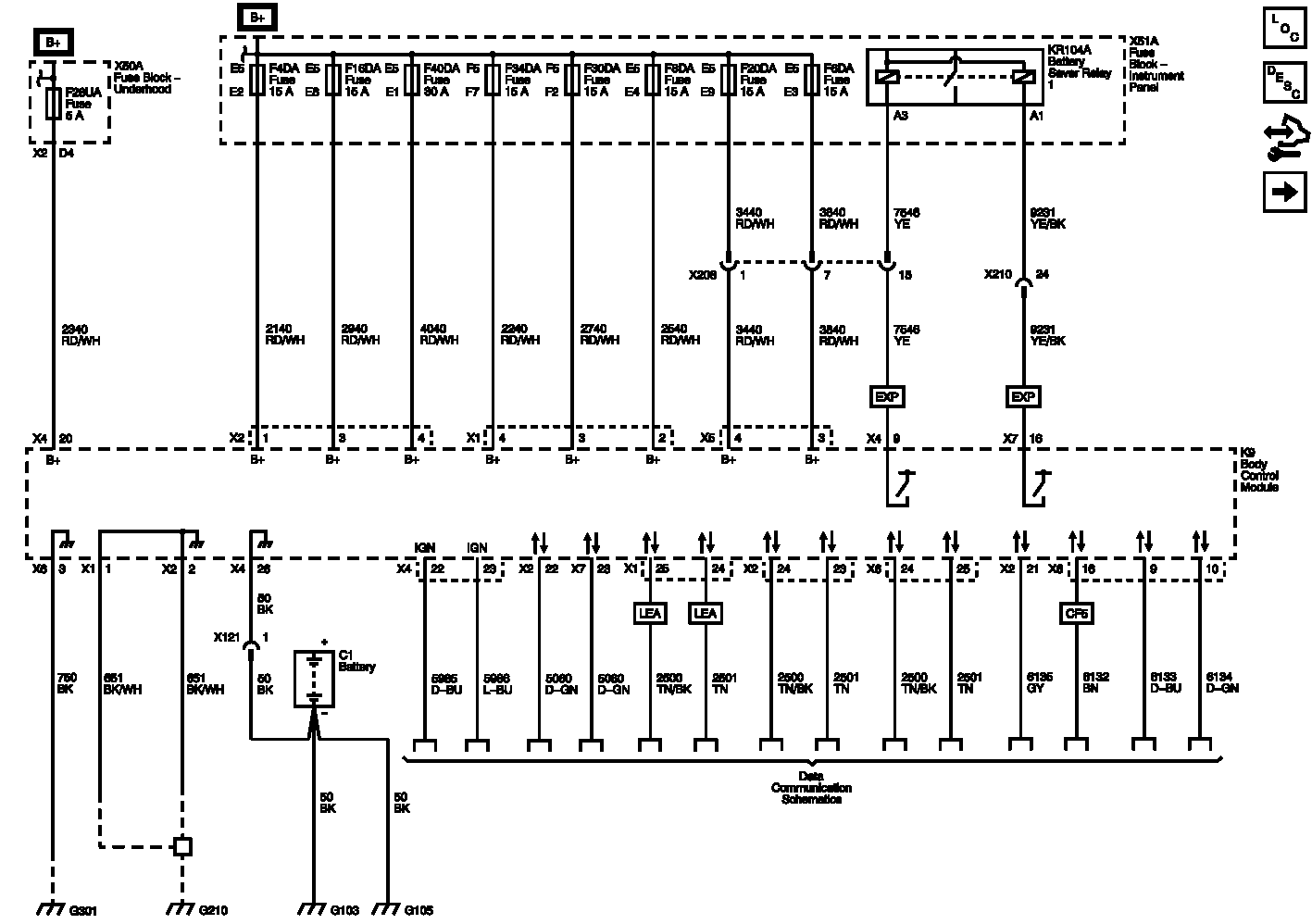

Fig 1: Module Power, Grounds And Subsystem References (1 Of 4) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
