Inflatable Restraint Side Impact Sensor (SIS)- Left Front (ASF)

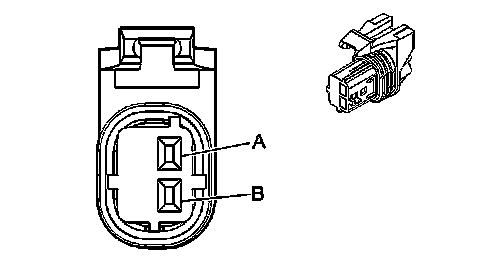

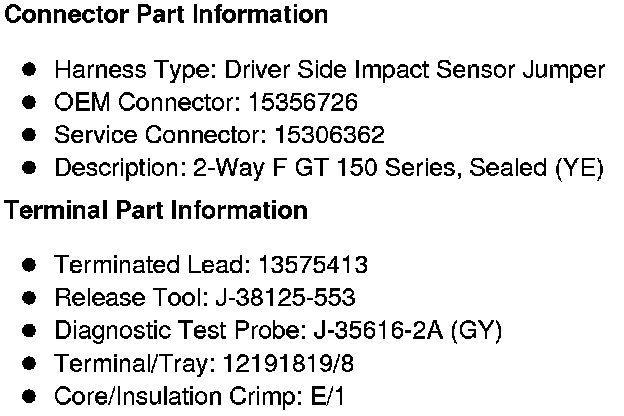

Component Connector End Views

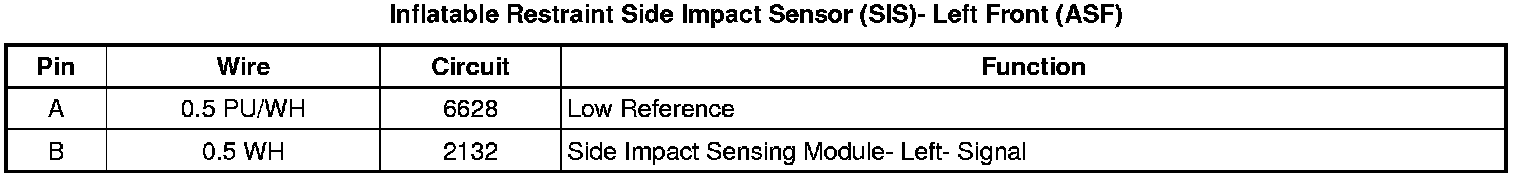

Inflatable Restraint Side Impact Sensor (SIS)- Left Front (ASF)
