Engine Control Module: Locations

Powertrain Component Views

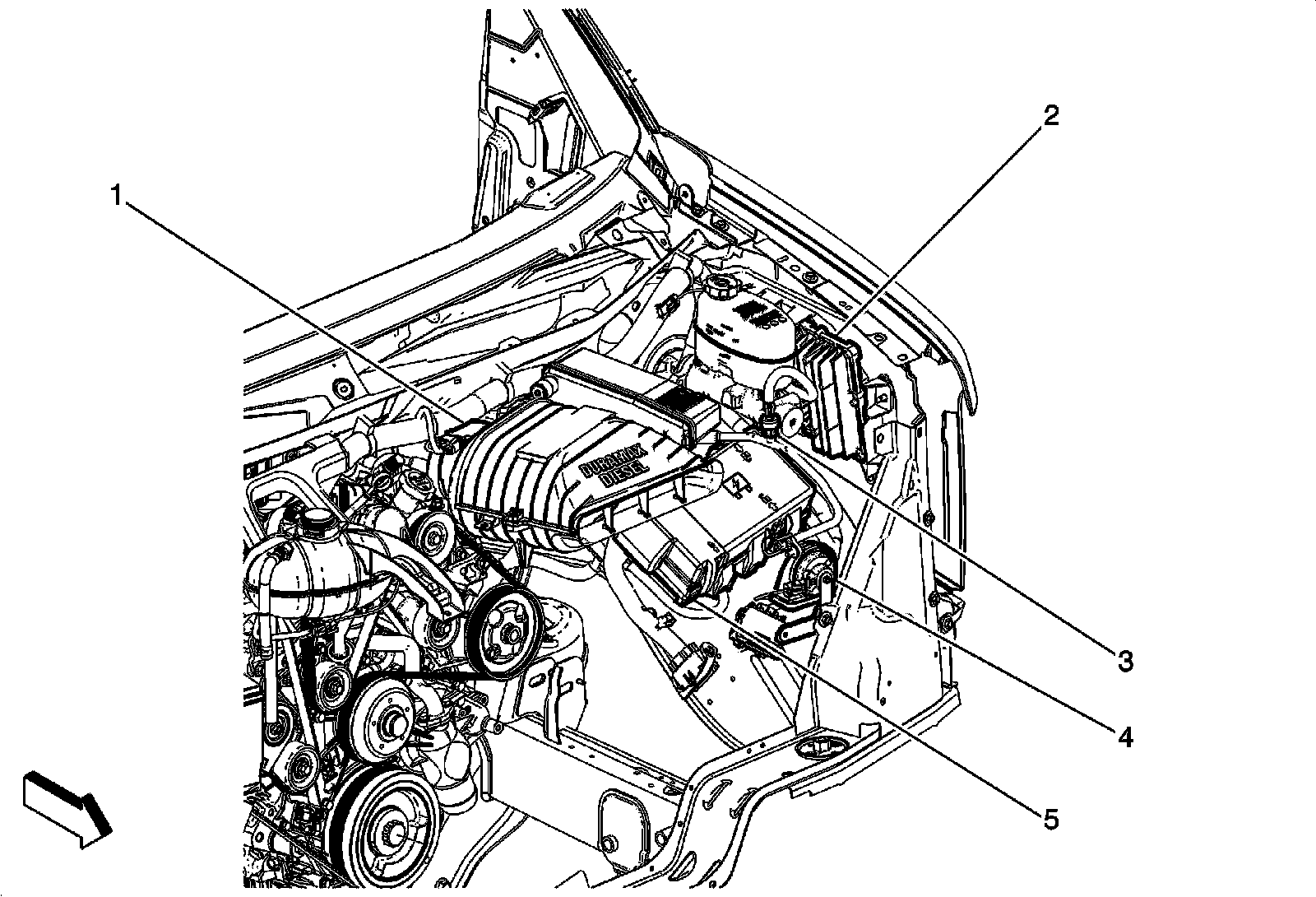

Engine Components (LGH)





1 - Mass Air Flow (MAF) Sensor/Intake Air Temperature (IAT) Sensor

2 - Engine Control Module (ECM)

3 - A/C Refrigerant Pressure Sensor

4 - Horn Assembly

5 - Fuse Block- Underhood
