Chevrolet
>>
2012
>>
Impala LS, Gas/Ethanol
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
Cellular System, Entertainment System, And Navigation System
>>
Wiring Schematics
>>
Radio/Navigation System Wiring Schematics
>>
Power, Ground, and References
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Power, Ground, and References

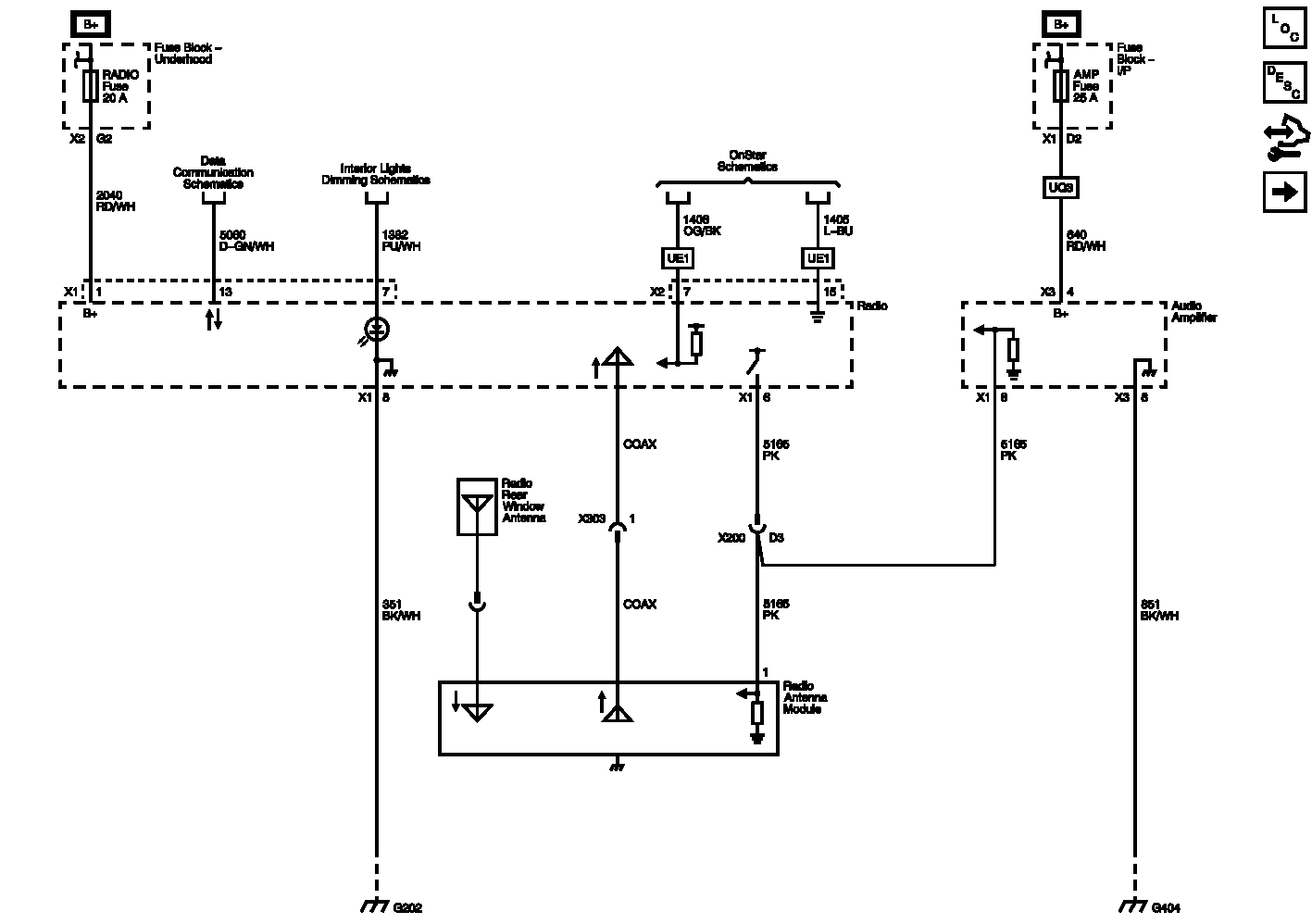

Fig 1: Power, Ground, And References Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
