Seat Memory Control Module X5 (A45)

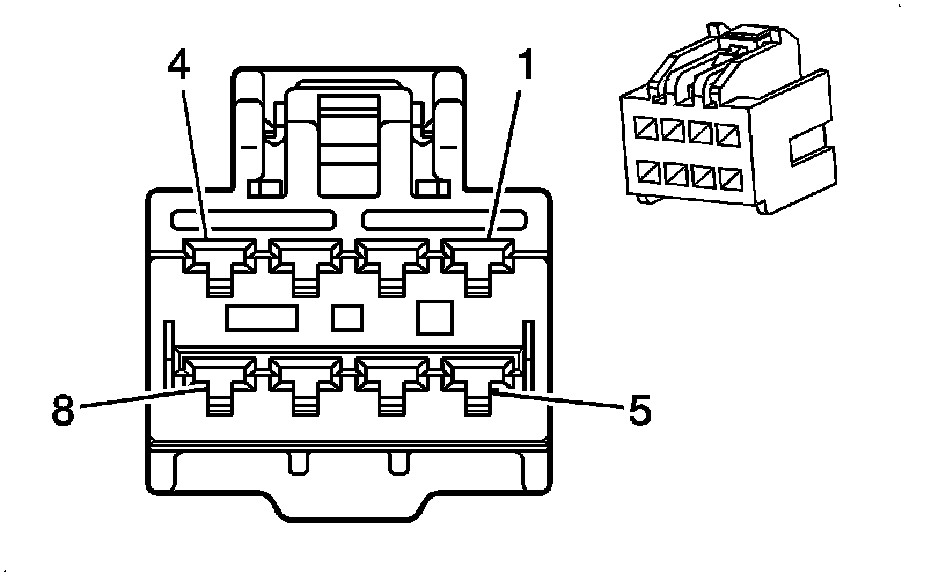

Component Connector End Views

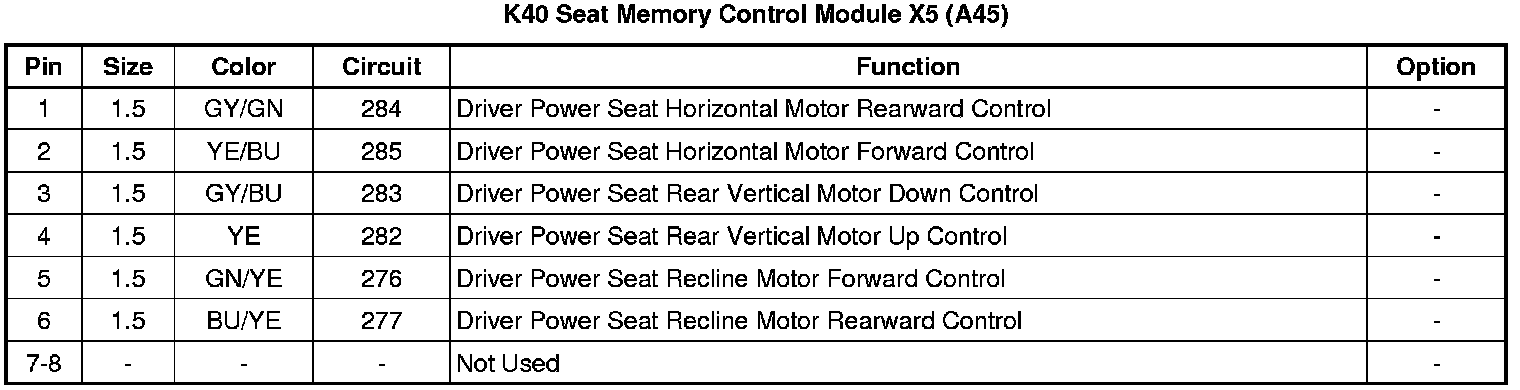

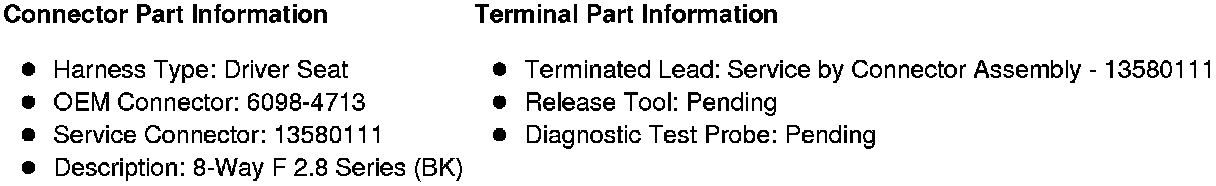

K40 Seat Memory Control Module X5 (A45)
