Seat Heating Control Module - Driver X2 (KA1 without A45)

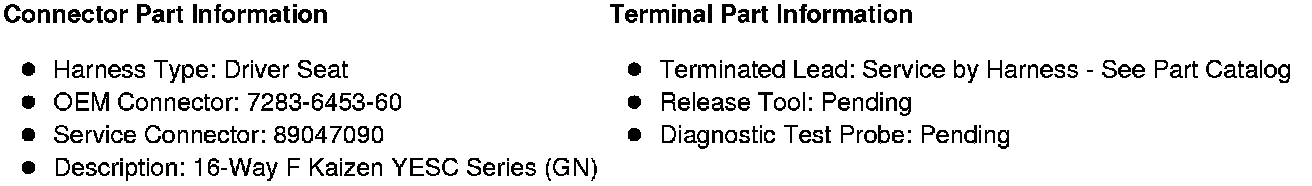

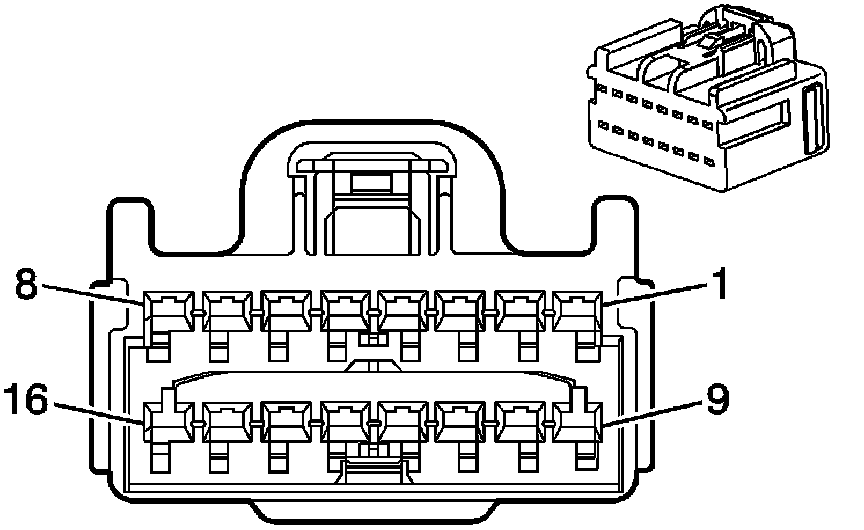

Component Connector End Views

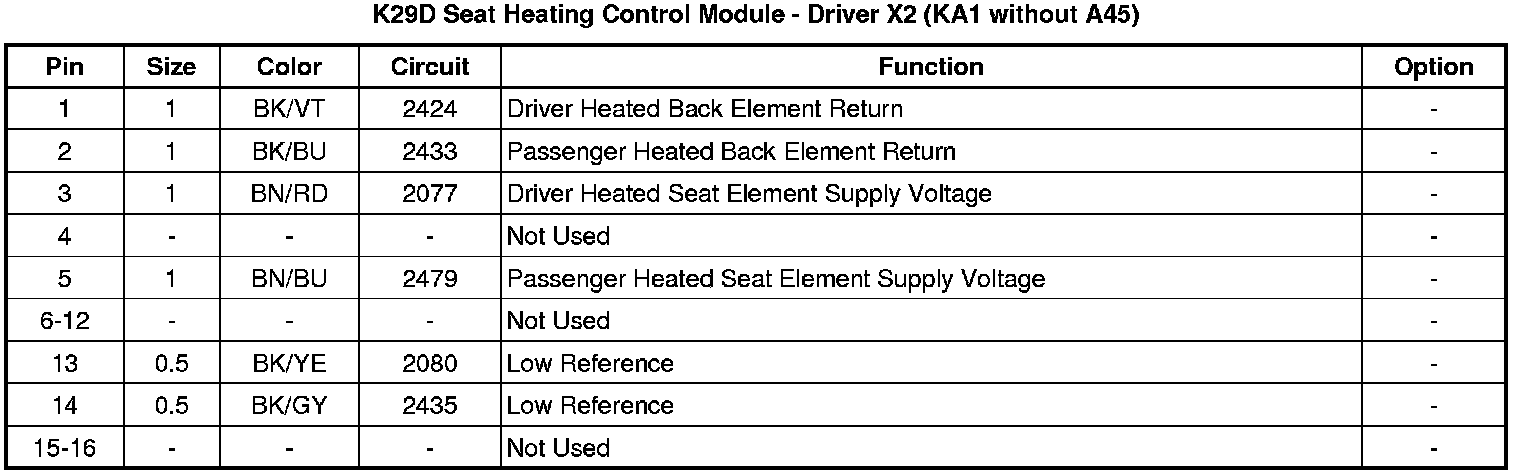

K29D Seat Heating
Control Module
- Driver X2 (KA1 without A45)
