Front of Engine Compartment Components

Front of Vehicle/Engine Compartment Component Views

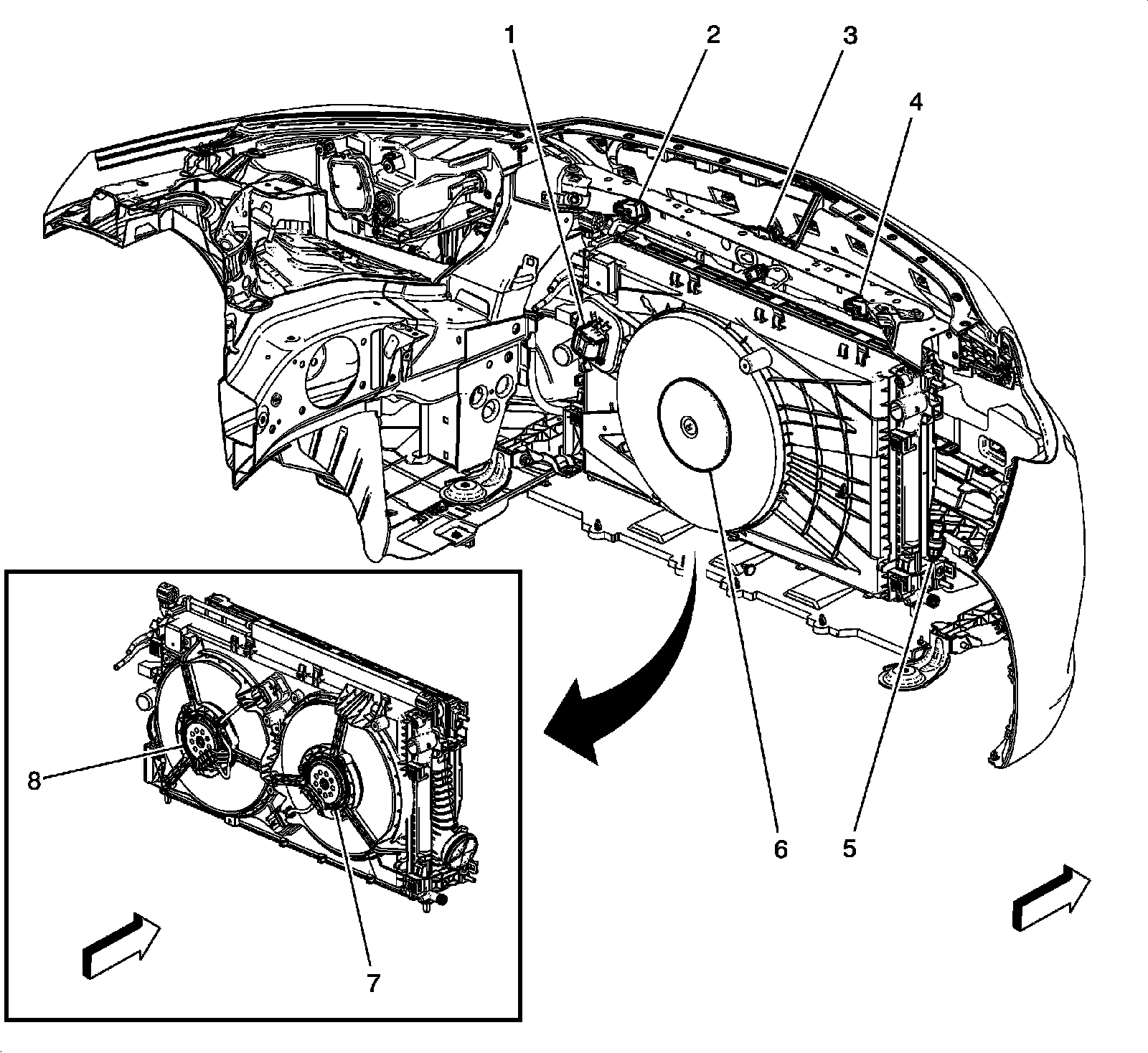

Front of Engine Compartment Components





1 - R10 Cooling Fan Resistor (LE9)

2 - B59L Front Impact Sensor- Left

3 - B55 Hood Ajar Switch

4 - B59R Front Impact Sensor- Right

5 - B1 A/C Refrigerant Pressure Sensor

6 - G10 Cooling Fan Motor (LE9)

7 - G10R Cooling Fan Motor- Right (LBS or LFW)

8 - G10L Cooling Fan Motor- Left (LBS or LFW)
