Data Link Connector: Locations

Instrument Panel/Center Console Component Views

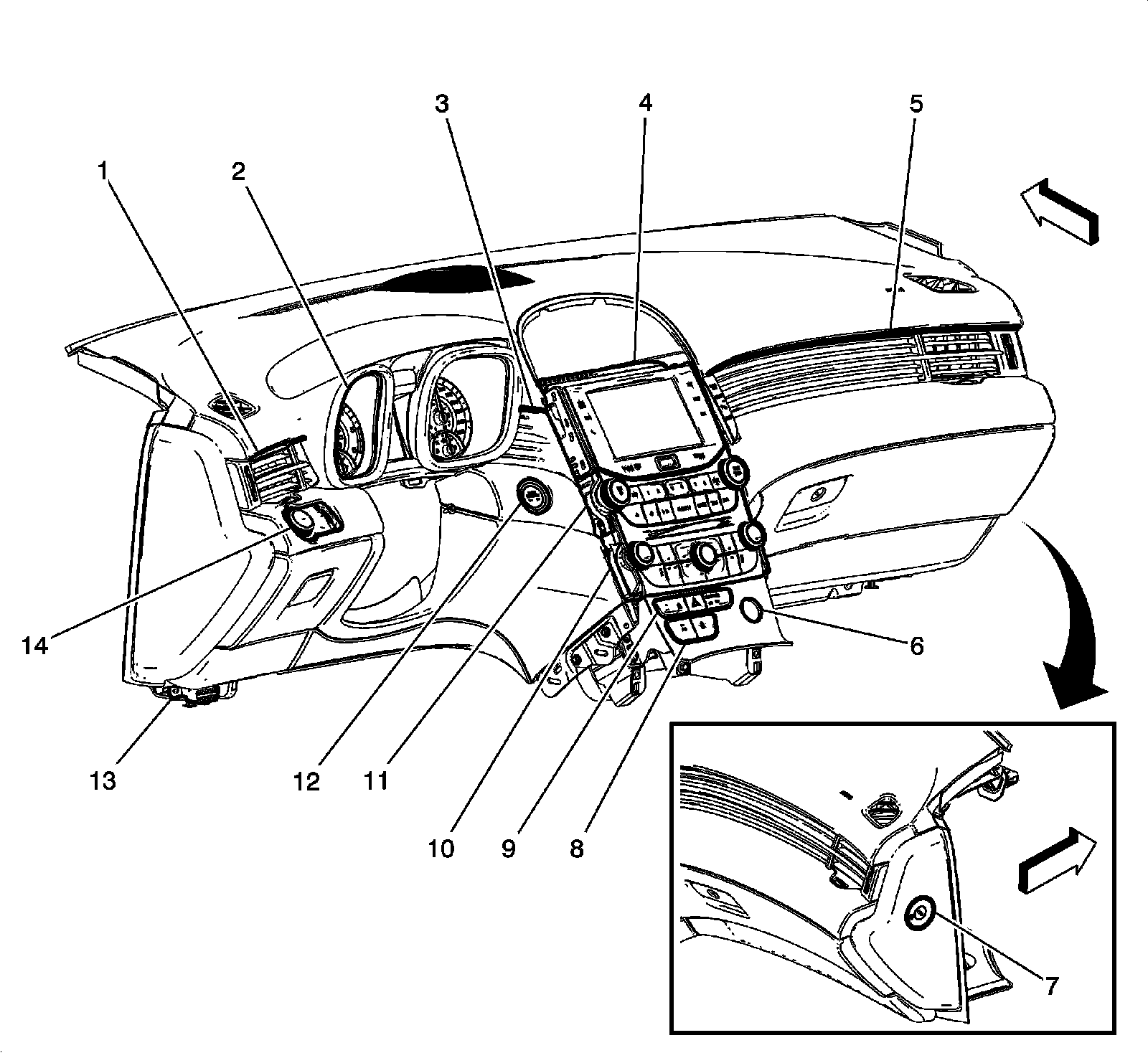

Front of Instument Panel Components





1 - E1G Accent Lamp - Left Instrument Panel (TSP or TSQ)

2 - P16 Instrument Cluster

3 - E1GA Accent Lamp - Left Middle Instrument Panel (TSP or TSQ)

4 - P17 Info Display Module (UEY, UFJ, UFW or UZZ)

5 - E1H Accent Lamp - Right Instrument Panel (TSP or TSQ)

6 - X80G Accessory Power Receptacle - Instrument Panel

7 - S40 Passenger Air Bag Disable Switch (C99)

8 - S48D Multifunction Switch 2 - Instrument Panel

9 - S48C Multifunction Switch 1 - Instrument Panel

10 - A26 HVAC Controls

11 - A22 Radio Controls

12 - S38 Ignition Mode Switch (BTM)

13 - X84 Data Link Connector

14 - S30 Headlamp Switch
