Fuel Pressure Sensor: Locations

Wheels/Vehicle Underbody Component Views

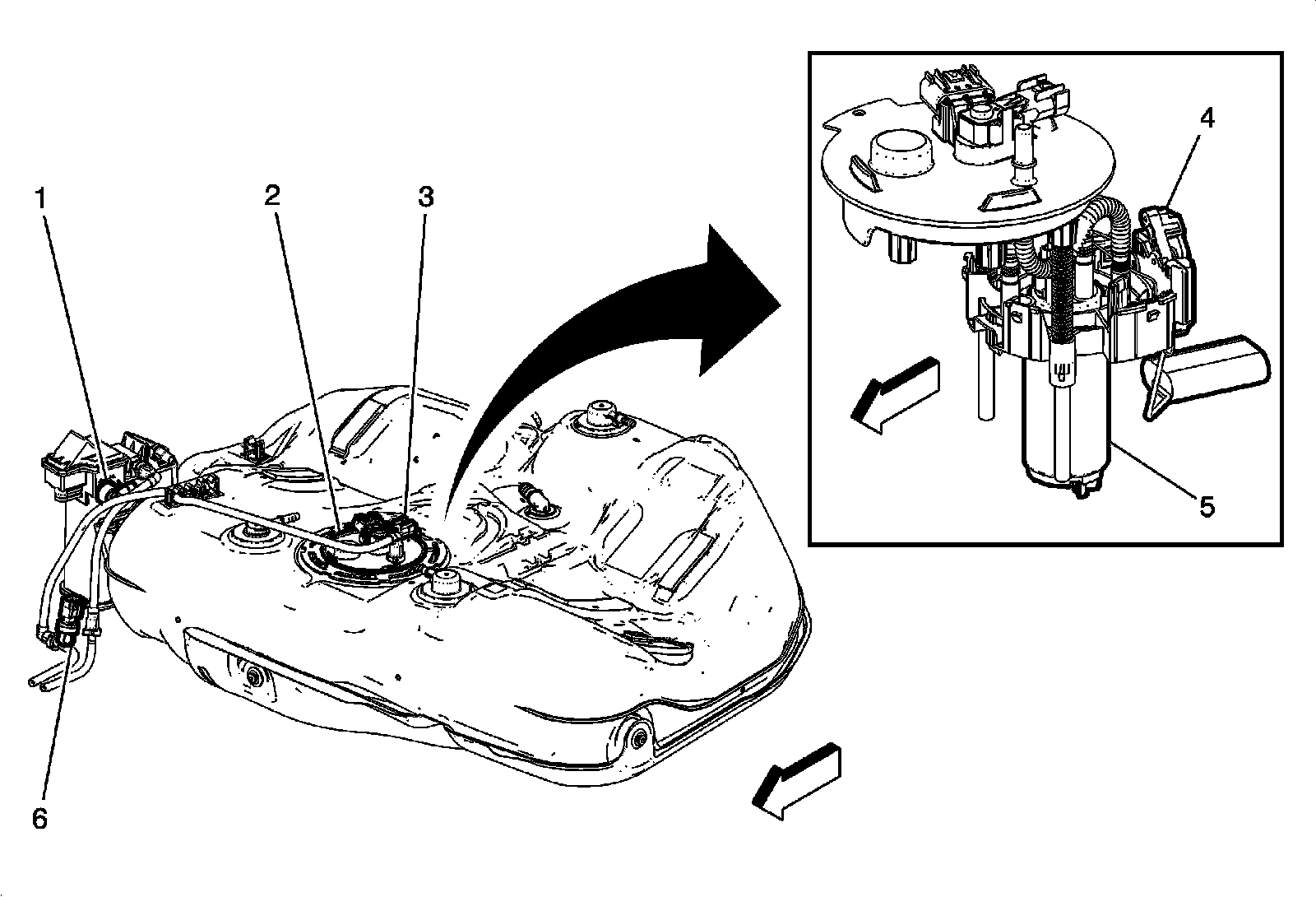

Fuel Tank Components (LE9 or LFW))





1 - Q13 Evaporative Emission Vent Solenoid Valve

2 - A7 Fuel Pump and Level Sensor Assembly

3 - B150 Fuel Tank Pressure Sensor

4 - B46 Fuel Level Sensor

5 - G12 Fuel Pump

6 - B47 Fuel Pressure Sensor
