Knock Sensor 2

Powertrain Component Views

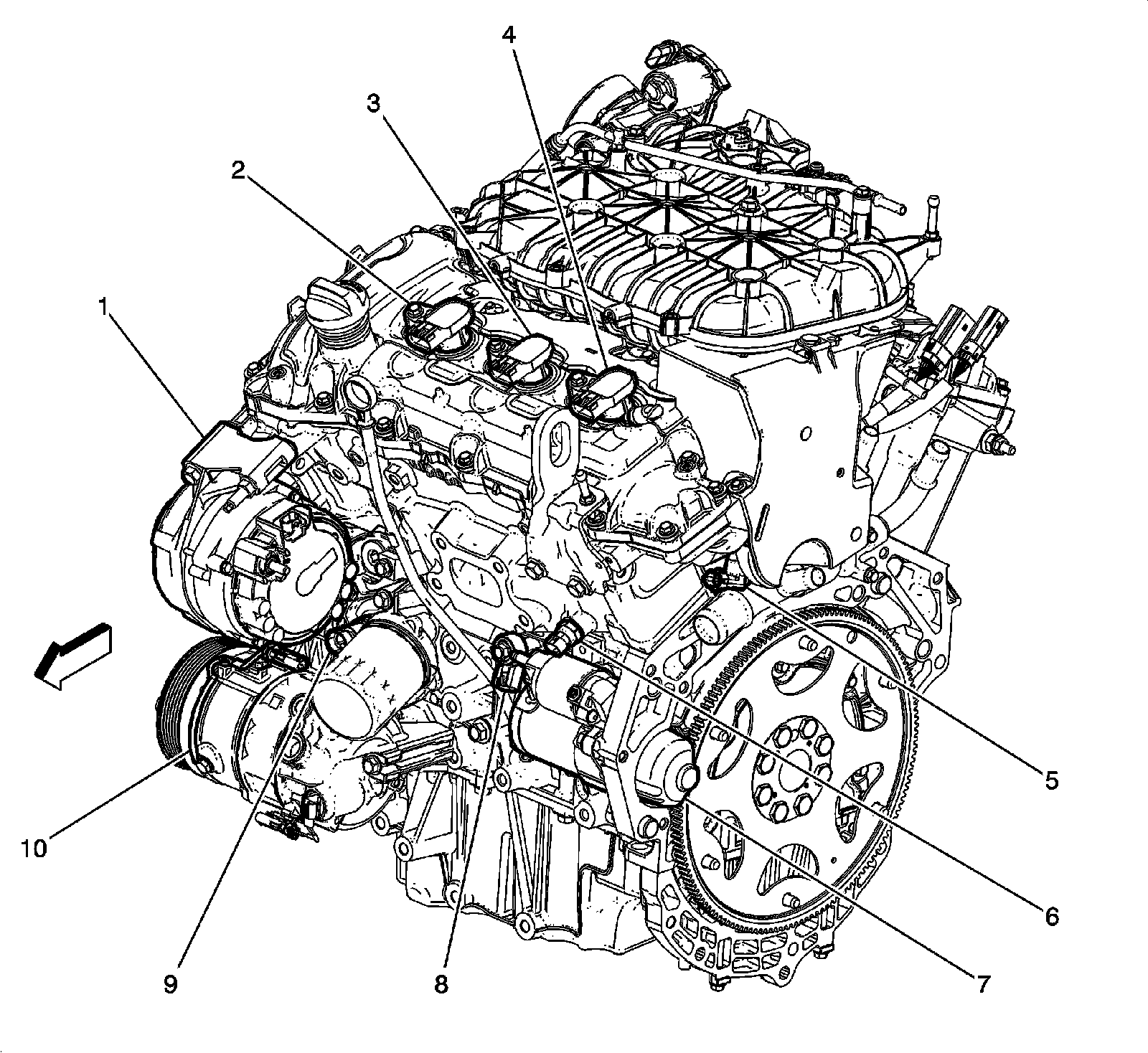

Left Front of Engine Components (LFW)





1 - G13 Generator

2 - T8B Ignition Coil 2

3 - T8D Ignition Coil 4

4 - T8F Ignition Coil 6

5 - G18 High Pressure Fuel Pump

6 - B34 Engine Coolant Temperature Sensor

7 - M64 Starter Motor

8 - B68B Knock Sensor 2

9 - B37 Engine Oil Pressure Switch

10 - Q2 A/C Compressor Clutch
