Wheel Alignment Specifications

Wheel Alignment Specifications

Table 1: Example

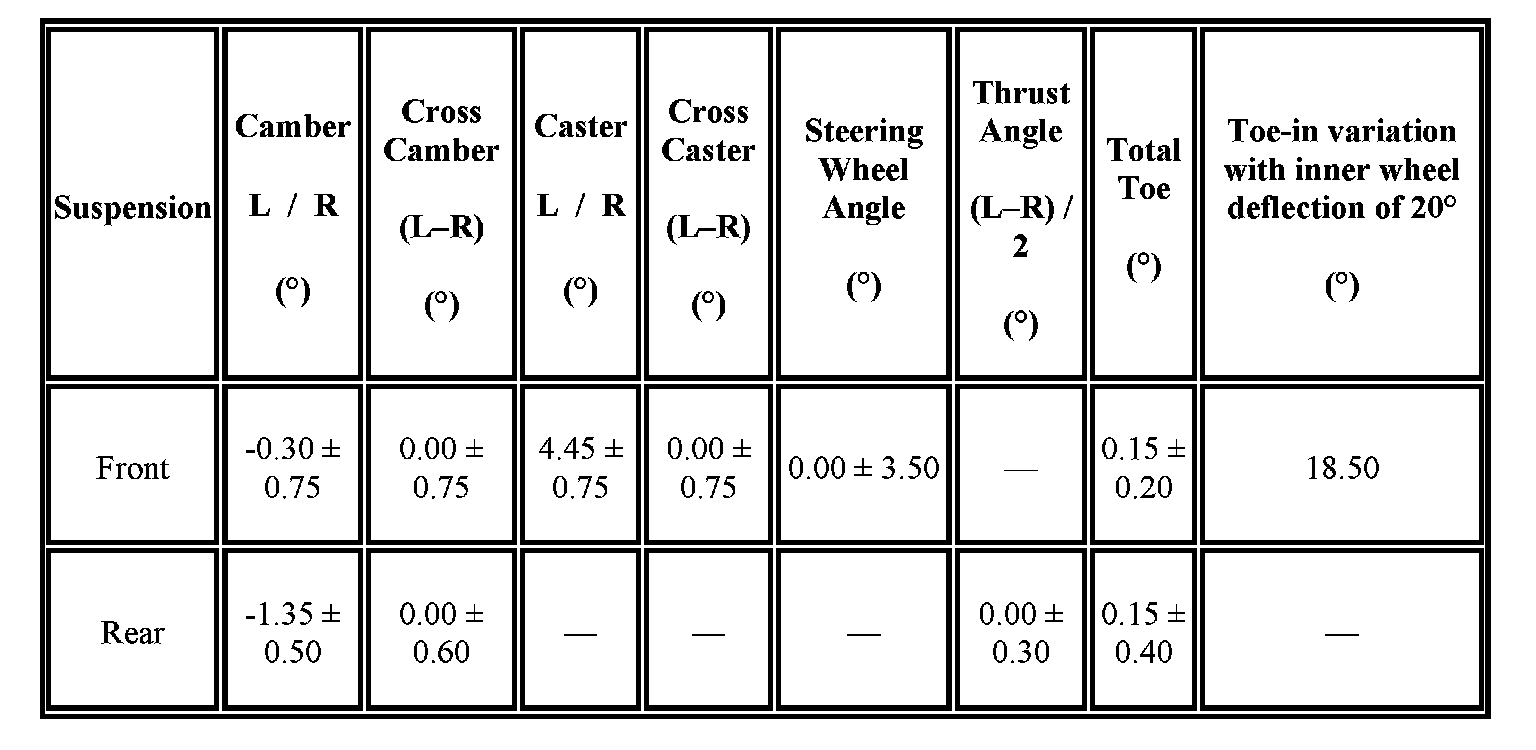

Table 2: Front and Rear Specifications

Note: All specifications are in degrees, convert to angular minutes, if necessary.

Conversion

^ 1.00 degree = 60 angular minutes
^ 0.75 degrees = 45 angular minutes
^ 0.50 degrees = 30 angular minutes
^ 0.25 degrees = 15 angular minutes
^ 1.00 angular minute = 60 angular seconds

Example

0.14 degrees* 60 angular minutes / degree = 8.40 angular minutes

0.40 angular / minutes* 60 angular seconds / angular minute = 24.00 angular seconds

Note: Angular seconds up to 30 are rounded off, angular seconds beyond are rounded up to 60 angular seconds.

24.00 angular seconds -> 0 angular seconds = 0.00 angular minute

0.14 degrees = 8.40 angular minutes = 8.00 angular minutes

Condition: Full tank, no passengers and placed on plane ground.
