K20 Engine Control Module X2 (LNP)

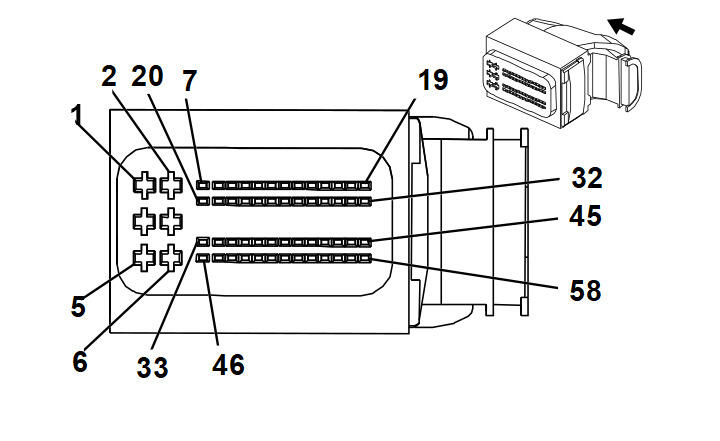

GM2486429
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 13717149
  • Service Connector: 13577556
  • Description: 58-Way F (GY)
 Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: Pending
  • Diagnostic Test Probe: Pending
K20 Engine Control Module X2 (LNP)

Pin Size Color Circuit Function Option
1 2.5 VT/D-BU 5290 Powertrain Main Relay Fused Supply (1) -
2 2.5 BK 250 Ground -
3 2.5 VT/D-BU 5290 Powertrain Main Relay Fused Supply (1) -
4 2.5 BK 250 Ground -
5 2.5 VT/D-BU 5290 Powertrain Main Relay Fused Supply (1) -
6 2.5 BK 250 Ground -
7 0.5 L-GN/GY 465 Fuel Pump Primary Relay Control -
8 0.5 L-GN 380 A/C Refrigerant Pressure Sensor Signal -
9 0.5 D-BU/VT 1589 Primary Fuel Level Sensor Signal -
10 - - - Not Used -
11 0.5 YE 447 Starter Relay Coil Control -
12 0.5 VT/YE 5985 Accessory Wakeup Serial Data -
13 0.5 L-GN/WH 1162 Accelerator Pedal Position Signal (2) -
14 0.5 BK/VT 1272 Accelerator Pedal Position Low Reference (2) -
15 - - - Not Used -
16 0.5 GY/BK 6316 Engine Reverse Gear Switch Signal MYJ
17 1.0 BN/GY 506 Glow Plug Signal -
18 - - - Not Used -
19 0.75 VT/BK 3 Run/Crank Ignition 1 Voltage -
20 0.5 BK/BN 5514 A/C Refrigerant Pressure Sensor Low Reference -
21 - - - Not Used -
22 0.5 BN/RD 2700 A/C Pressure Sensor 5 Volt Reference -
23 0.5 GY/RD 6109 Clutch Apply Sensor Voltage Reference MYJ
24 0.5 WH/RD 1164 Accelerator Pedal Position 5 Volt Reference (1) -
25 0.5 YE/WH 1161 Accelerator Pedal Position Signal (1) -
26 0.5 BK/D-BU 1271 Accelerator Pedal Position Low Reference (1) -
27 - - - Not Used -
28 0.5 BN/L-GN 1174 Oil Level Switch Signal -
29 0.5 BN/RD 1274 Accelerator Pedal Position 5 Volt Reference (2) -
30-32 - - - Not Used -
33 0.5 BK/D-GN 6281 Fuel Level Sensor Low Reference -
34 0.5 BK/GY 6110 Clutch Apply Sensor Low Reference MYJ
35 - - - Not Used -
36 0.5 WH 335 Low Speed Cooling Fan Relay Control -
37-40 - - - Not Used -
41 0.5 WH/GY 459 A/C Compressor Clutch Relay Control -
42 0.5 D-GN/VT 335 Low Speed Cooling Fan Relay Control -
43-44 - - - Not Used -
45 0.5 VT 6755 Cam Phaser Y Return Low Reference -
46 1.0 BN/GY 505 Glow Plug Control -
47 0.5 WH 2501 High Speed GMLAN Serial Data (-) (1) -
48 0.5 D-BU 2500 High Speed GMLAN Serial Data (+) (1) -
49 - - - Not Used -
50 0.5 D-BU/D-GN 7071 Heater Fuel Control -
51-54 - - - Not Used -
55 0.5 BN/WH 419 Check Engine Indicator Control -
56-58 - - - Not Used -
