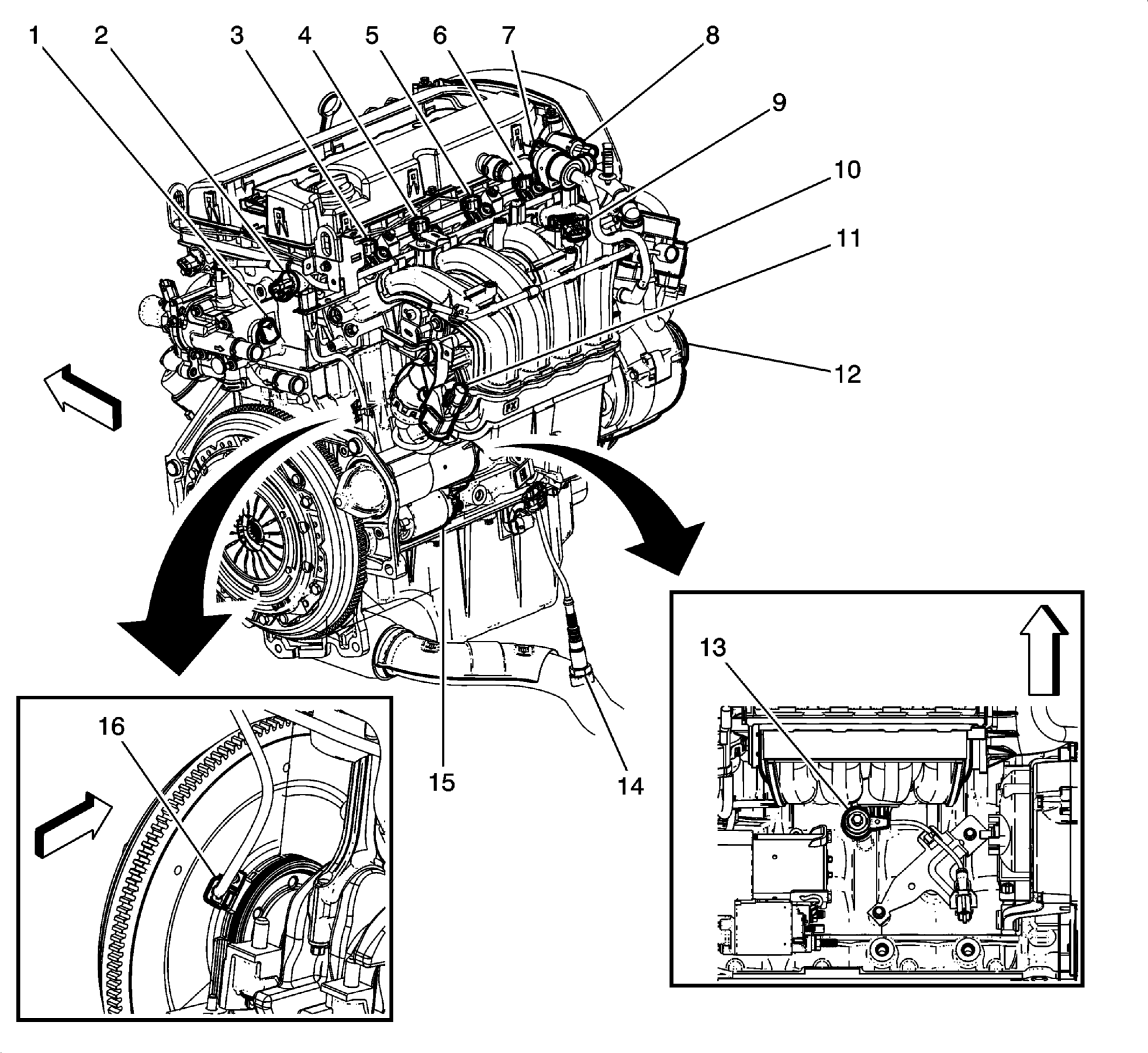

| 1 |
B34A Engine Coolant Temperature Sensor 1 |
| 2 |
B23E Camshaft Position Sensor - Exhaust |
| 3 |
Q17D Fuel Injector 4 |
| 4 |
Q17C Fuel Injector 3 |
| 5 |
Q17B Fuel Injector 2 |
| 6 |
Q17A Fuel Injector 1 |
| 7 |
Q12 Evaporative Emission Purge Solenoid Valve |
| 8 |
Q6E Camshaft Position Actuator Solenoid Valve - Exhaust |
| 9 |
B74 Manifold Absolute Pressure Sensor |
| 10 |
Q38 Throttle Body |
| 11 |
Q22 Intake Manifold Tuning Solenoid Valve |
| 12 |
G13 Generator |
| 13 |
B68 Knock Sensor |
| 14 |
B52B Heated Oxygen Sensor 2 |
| 15 |
B35B Engine Oil Level Sensor |
| 16 |
M64 Starter Motor |
| 17 |
B26 Crankshaft Position Sensor |
