Engine Components- Right Front (LNP)

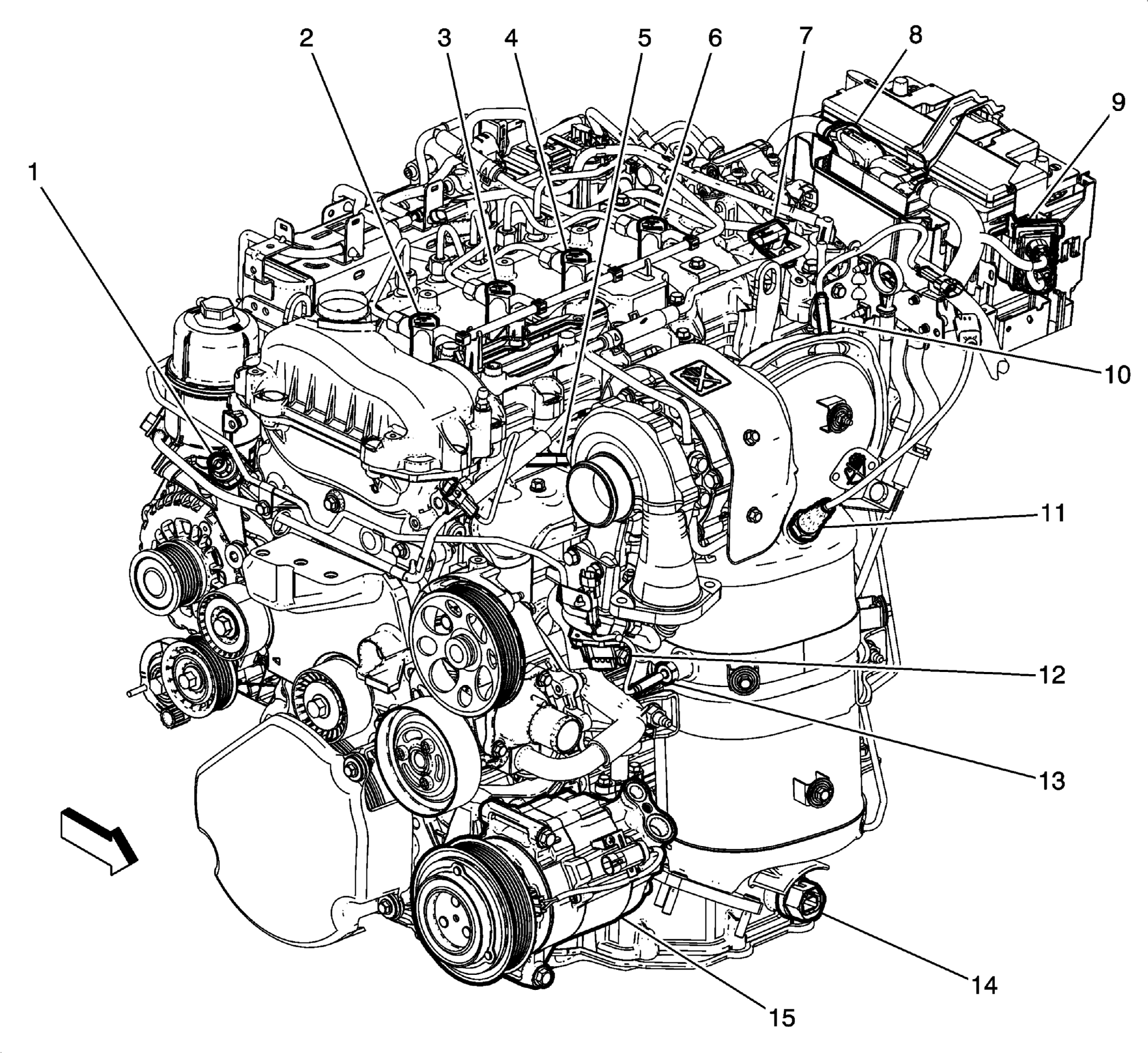

Fig 1: Right Front Of Engine Components (LNP)
GM2485793Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 B37 Engine Oil Pressure Switch
2 Q17A Fuel Injector 1
3 Q17B Fuel Injector 2
4 Q17C Fuel Injector 3
5 B131B Exhaust Temperature Sensor 2
6 Q17D Fuel Injector 4
7 B23 Camshaft Position Sensor
8 K20 Engine Control Module
9 K34 Glow Plug Control Module
10 B131A Exhaust Temperature Sensor 1
11 B52 Heated Oxygen Sensor
12 B112 Turbocharger Vane Position Sensor
13 B131C Exhaust Temperature Sensor 3
14 B35 Engine Oil Level Switch
15 Q2 A/C Compressor Clutch
