Engine Components- Rear (LNP)

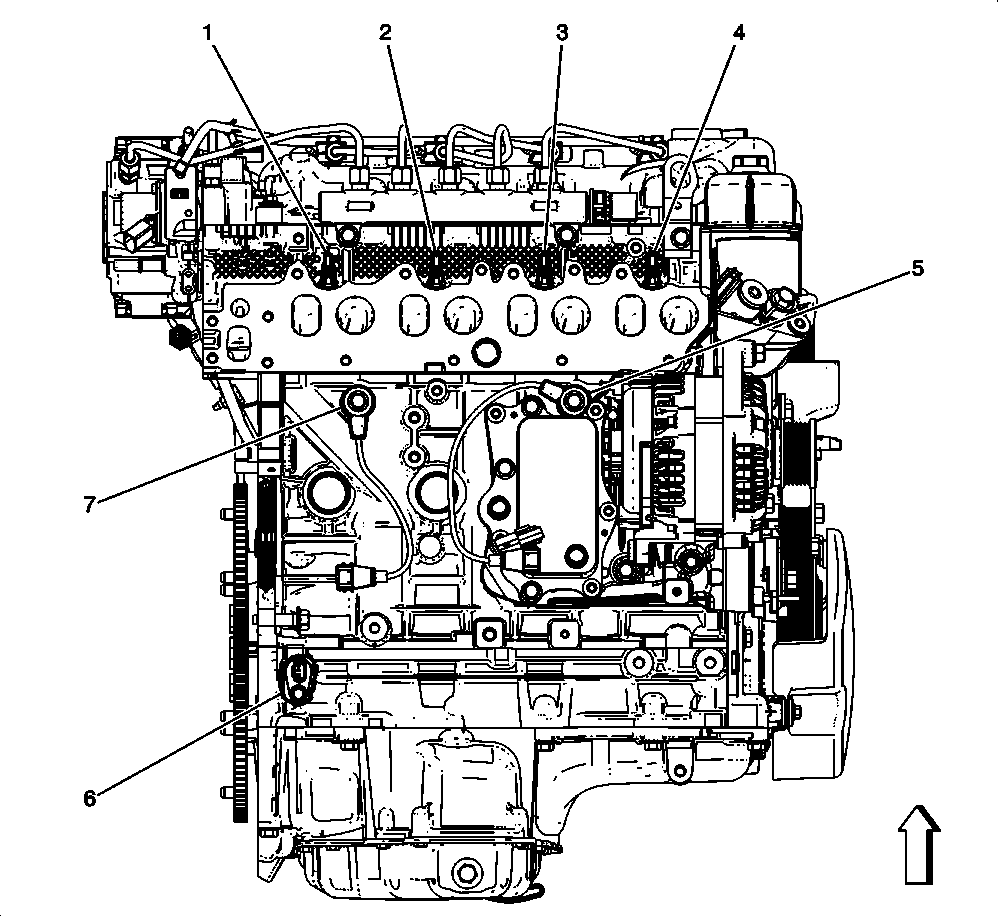

Fig 1: Rear Of Engine Components (LNP)
GM2485809Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 E12D Glow Plug 4
2 E12C Glow Plug 3
3 E12B Glow Plug 2
4 E12A Glow Plug 1
5 B68B Knock Sensor 2
6 B26 Crankshaft Position Sensor
7 B68A Knock Sensor 1
