Knock Sensor: Locations

Powertrain Component Views

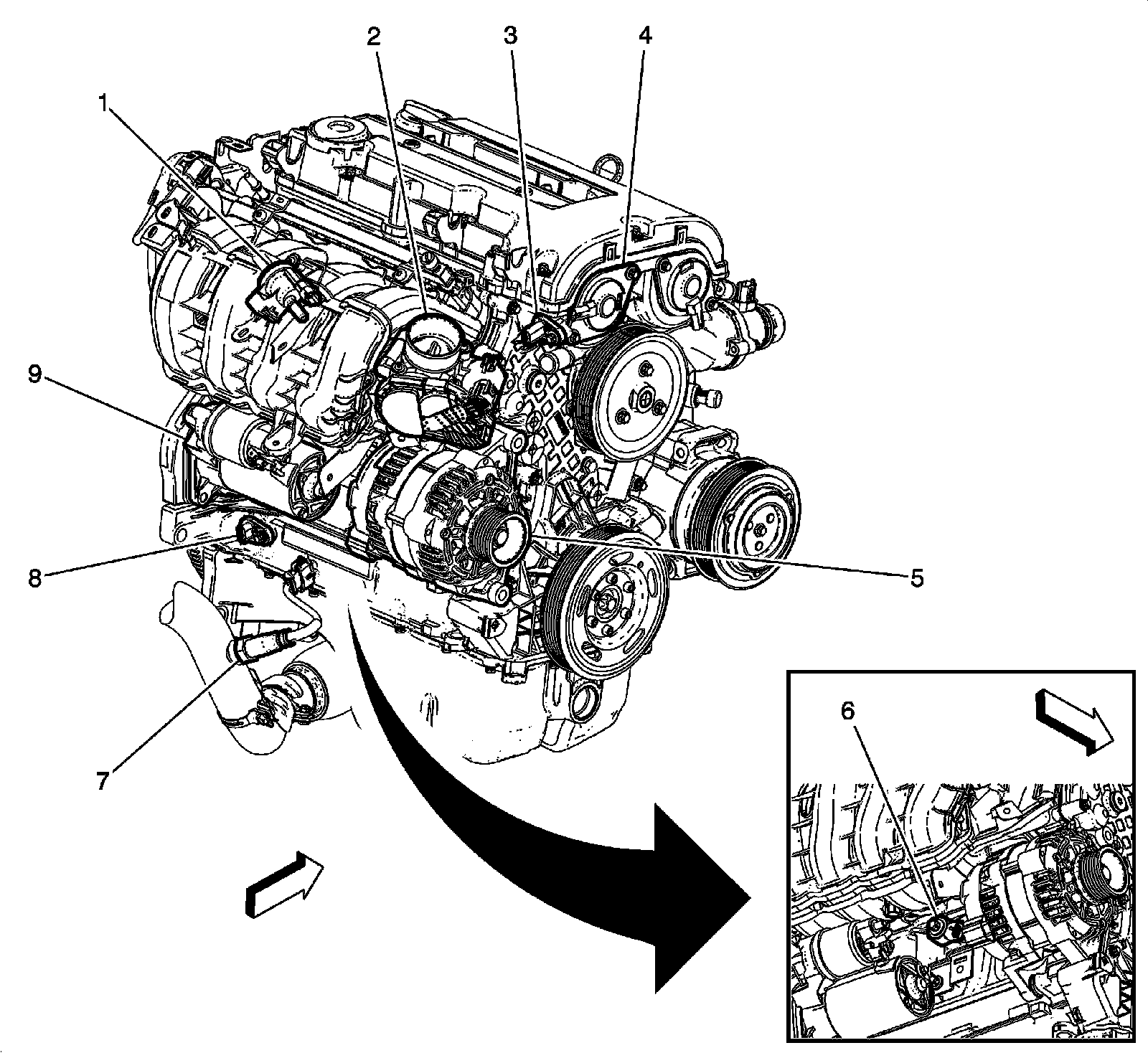

Right Rear of Engine Components- 1.4L (LUV)





1 - Q12 Evaporative Emission Purge Solenoid Valve

2 - Q38 Throttle Body

3 - B23F Camshaft Position Sensor - Intake

4 - Q6F Camshaft Position Actuator Solenoid Valve - Intake

5 - G13 Generator

6 - B68 Knock Sensor

7 - B52B Heated Oxygen Sensor 2

8 - B26 Crankshaft Position Sensor

9 - M64 Starter Motor
