Timing Cover

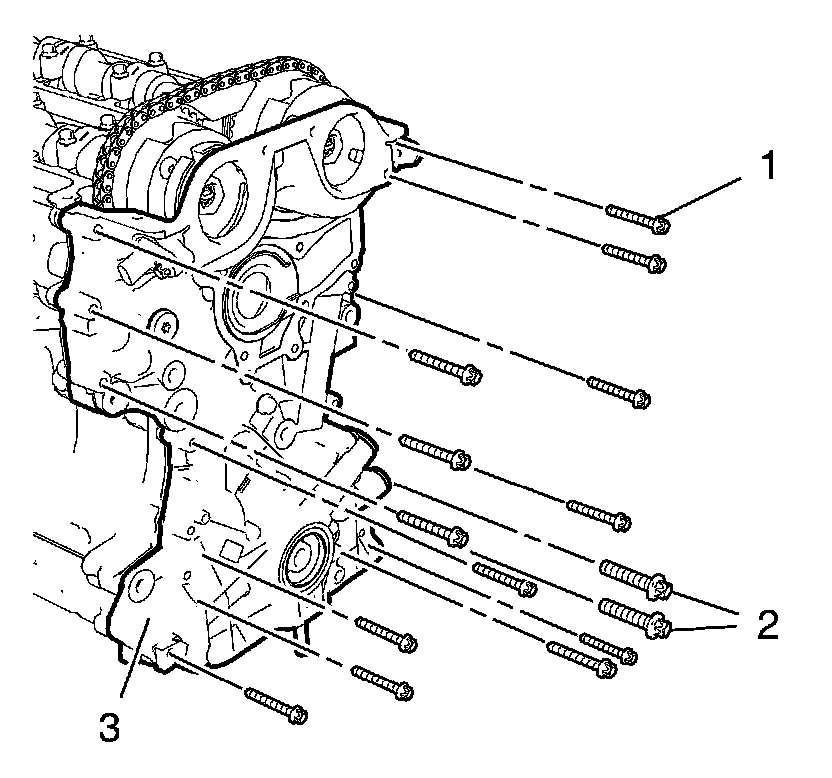

Engine Front Cover






Tighten 13 engine front cover bolts M6 8 Nm (71 lb in)

Tighten 2 engine front cover bolts M10 35 Nm (26 lb ft)
