Front of Instrument Panel Components

Front of Instrument Panel Components

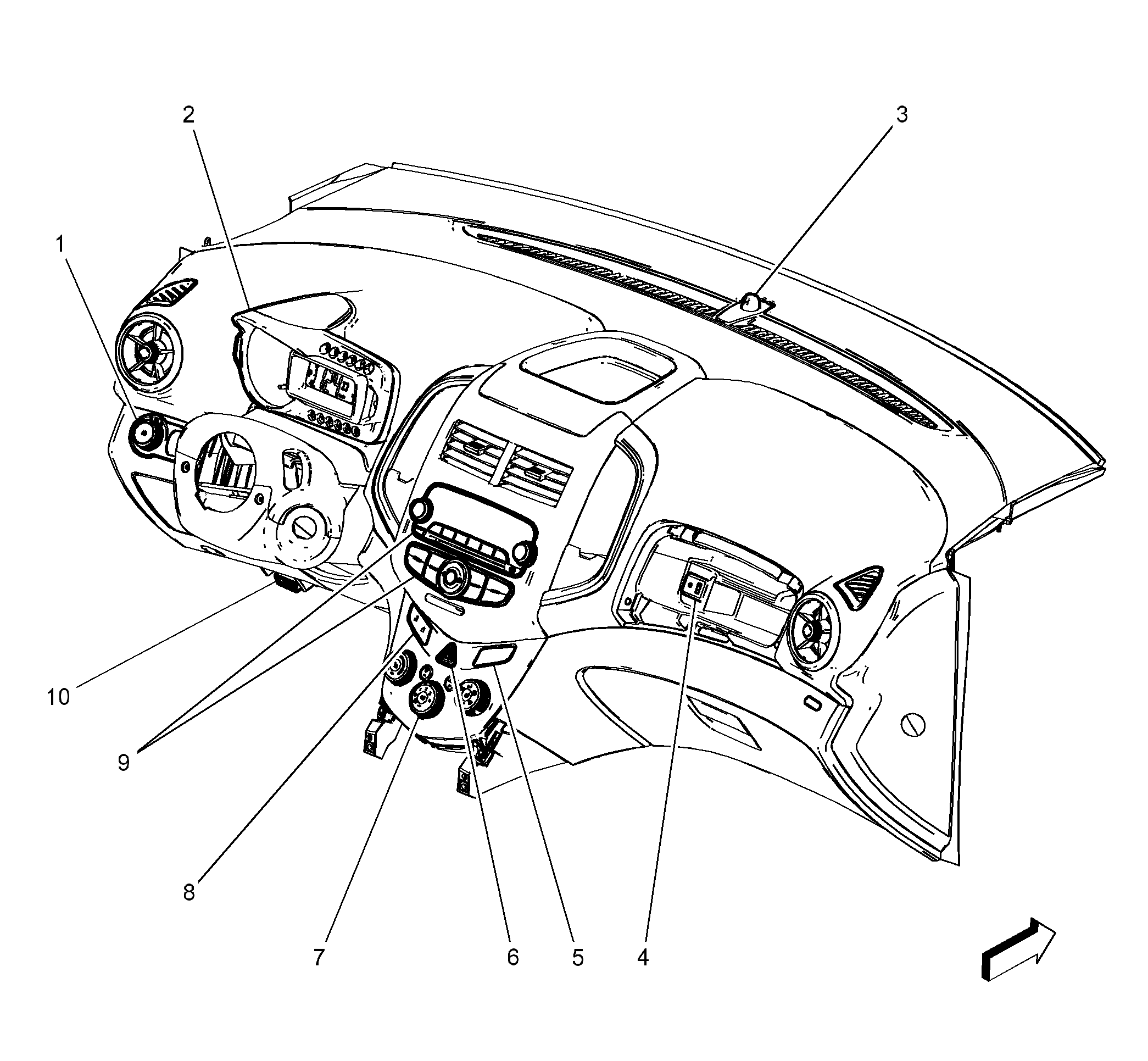

Component Name Callout
S30 Headlamp Switch 1
P16 Instrument Cluster 2
B10 Ambient Light Sensor (UTJ) 3
X83 Auxiliary Audio Input (UH7) 4
P14 Passenger Air Bag Disable Indicator 5
S26 Hazard Lamps Switch 6
K33 HVAC Control Module 7
S13D Door Lock Switch - Driver 8
A11 Radio 9
X84 Data Link Connector 10
Fig 1: Front of Instrument Panel Components
GM2654493Courtesy of GENERAL MOTORS COMPANY
