Rear of Instrument Panel Components

Rear of Instrument Panel Components

Component Name Callout
K73 Telematics Communication Interface Control Module (UE1) 1
F101 Passenger Instrument Panel Air Bag 2
X51A Fuse Block - Instrument Panel 3
K9 Body Control Module 4
K43 Power Steering Control Module 5

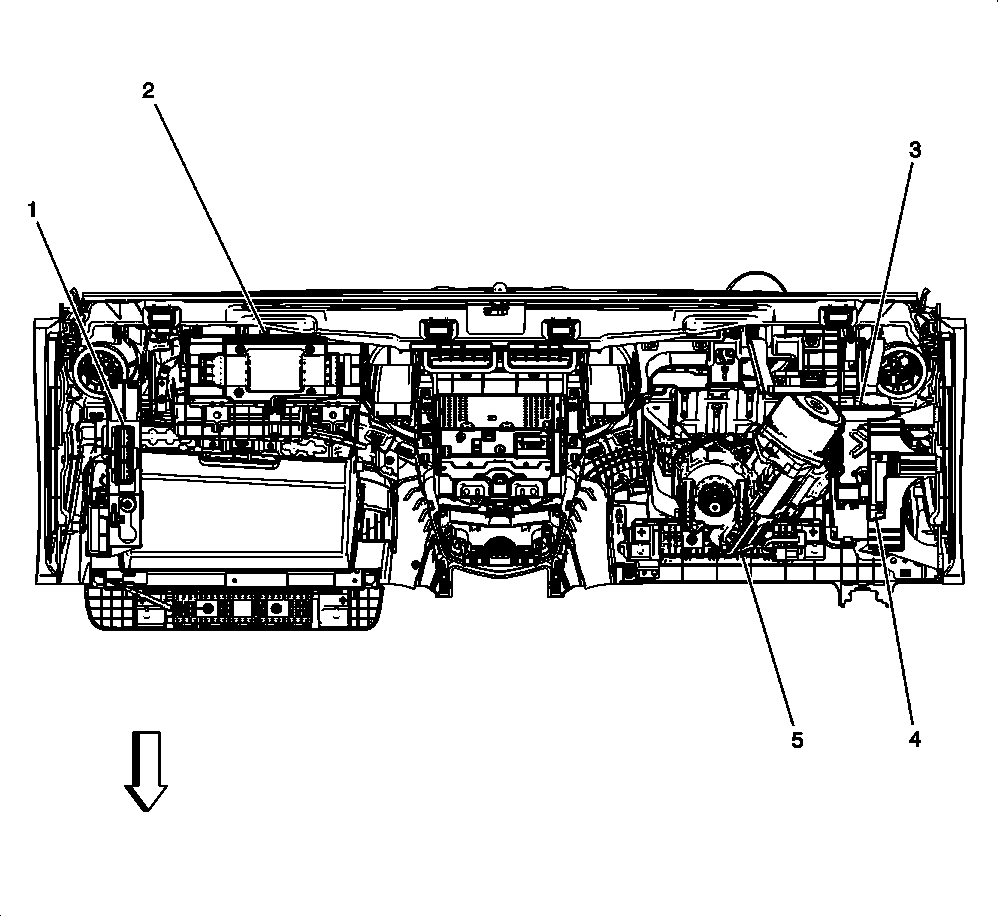

Fig 1: Rear of Instrument Panel Components
GM2741476Courtesy of GENERAL MOTORS COMPANY
