Under Instrument Panel Components

Under Instrument Panel Components

Component Name Callout
B25 Clutch Pedal Position Switch (M26 or MZ4) 1
B22 Brake Pedal Position Sensor 2
B107 Accelerator Pedal Position Sensor 3
B25B Clutch Pedal Position Sensor (M26 or MZ4) 4

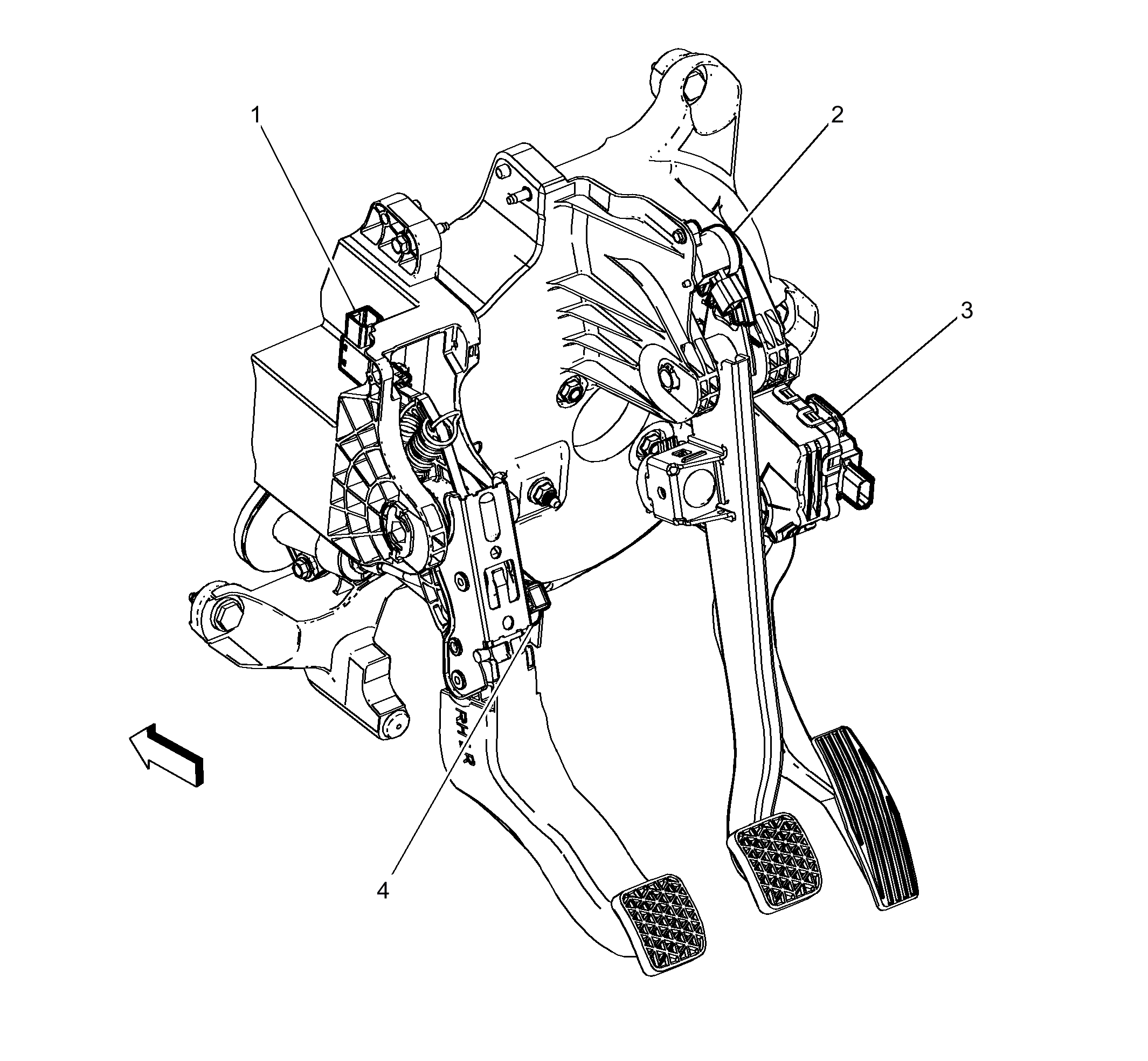

Fig 1: Under Instrument Panel Components
GM2567362Courtesy of GENERAL MOTORS COMPANY
