Installation Procedure
Courtesy of GENERAL MOTORS COMPANY
- Apply a few drops of clean engine oil to the male pipe end.
Courtesy of GENERAL MOTORS COMPANY
- Push both sides of the fitting together in order to snap the retaining tabs into place.
Courtesy of GENERAL MOTORS COMPANY
- Once installed, pull on both sides of the fitting in order to make sure the connection is secure.
Courtesy of GENERAL MOTORS COMPANY

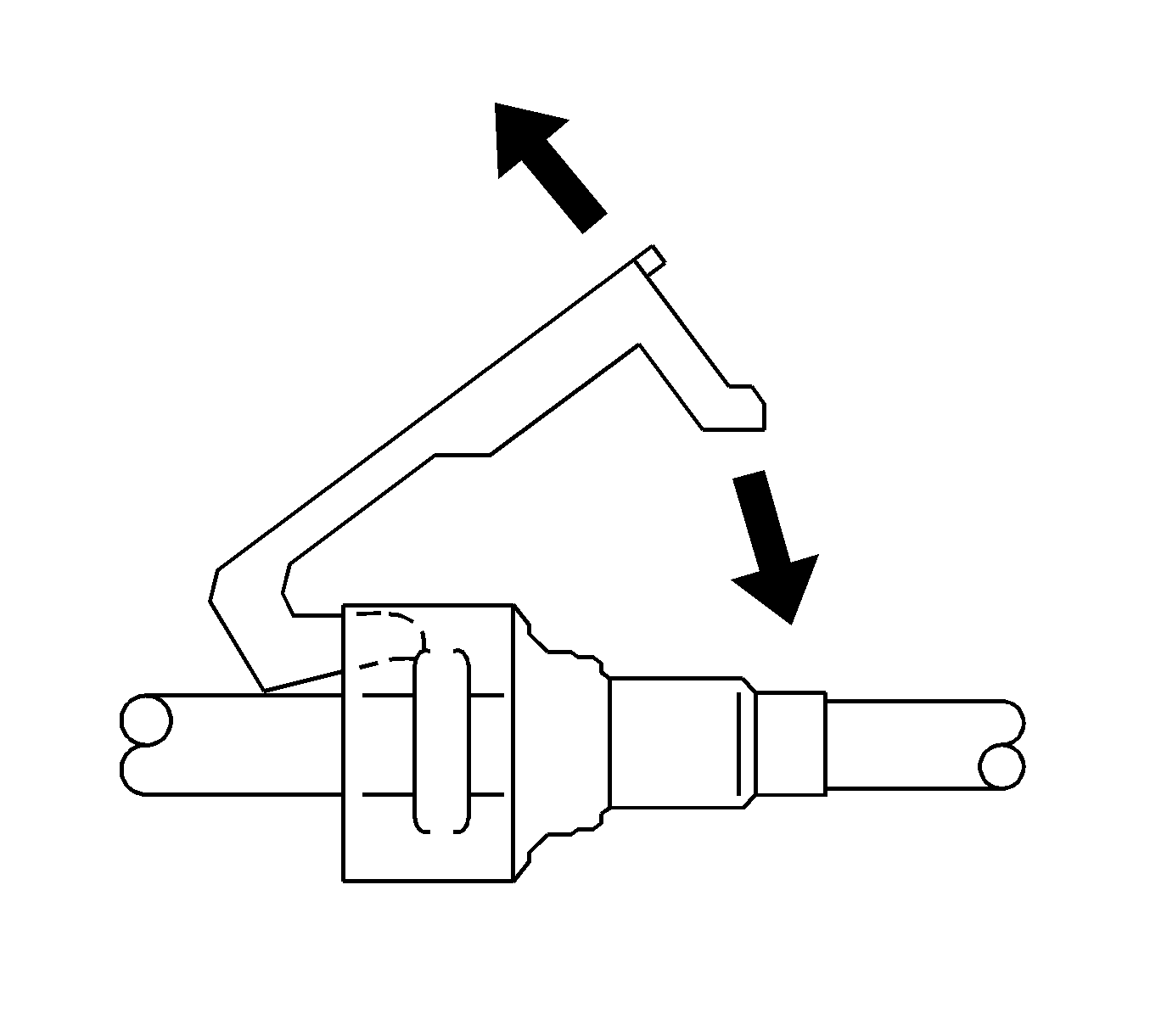

- Install the retainer to the fuel feed quick-connect fitting.
