Outside Rearview Mirror Replacement (Power)

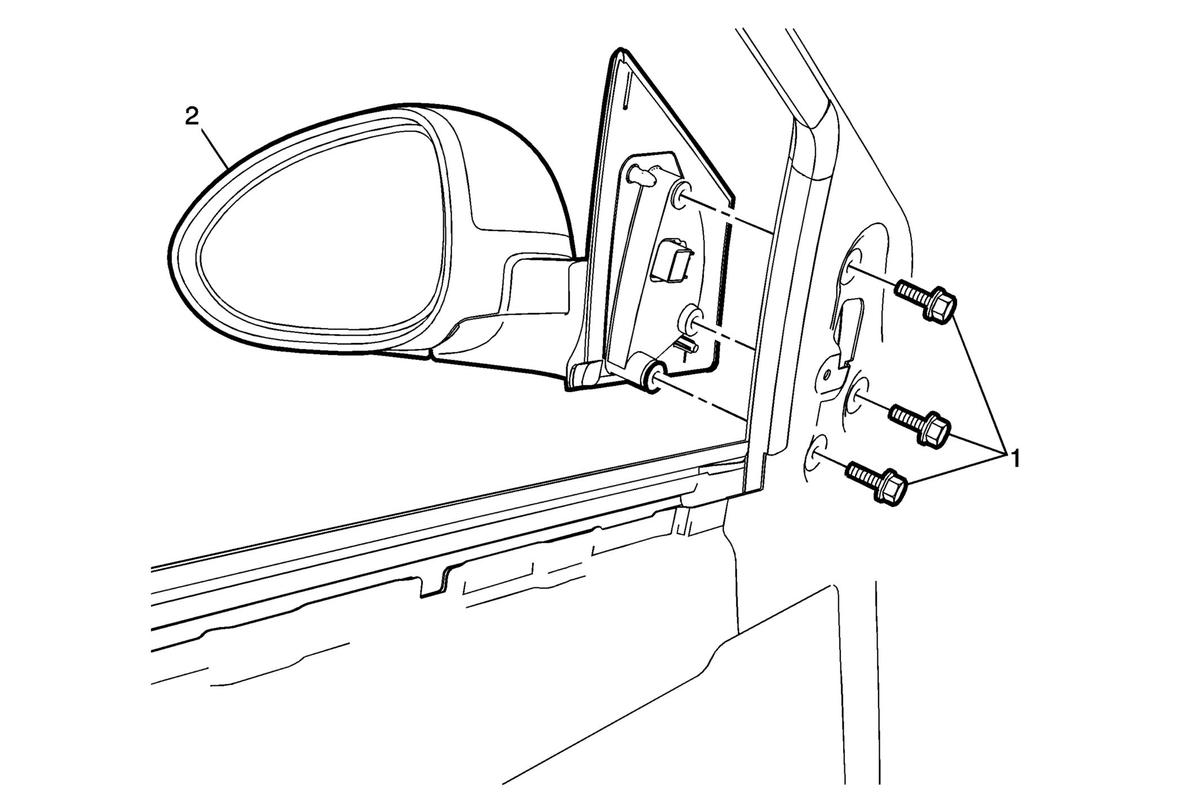

Fig 1: Outside Rearview Mirror (Power)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door upper front trim panel. Refer to Front Side Door Upper Front Trim Panel Replacement . Remove the outside rearview mirror bolt access hole on the front side door trim panel.
1	Outside Rearview Mirror Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 10 N.m (89 lb in)
2	Outside Rearview Mirror Procedure Inspect the outside mirror for proper operation before installing the door trim panel.

Callout

Component Name

Preliminary Procedures

Remove the front side door upper front trim panel. Refer to Front Side Door Upper Front Trim Panel Replacement .
Remove the outside rearview mirror bolt access hole on the front side door trim panel.

Outside Rearview Mirror Fastener (Qty: 3)

CAUTION:

Procedure
Disconnect the electrical connector.
Tighten
10 N.m (89 lb in)

Outside Rearview Mirror
Procedure
Inspect the outside mirror for proper operation before installing the door trim panel.
