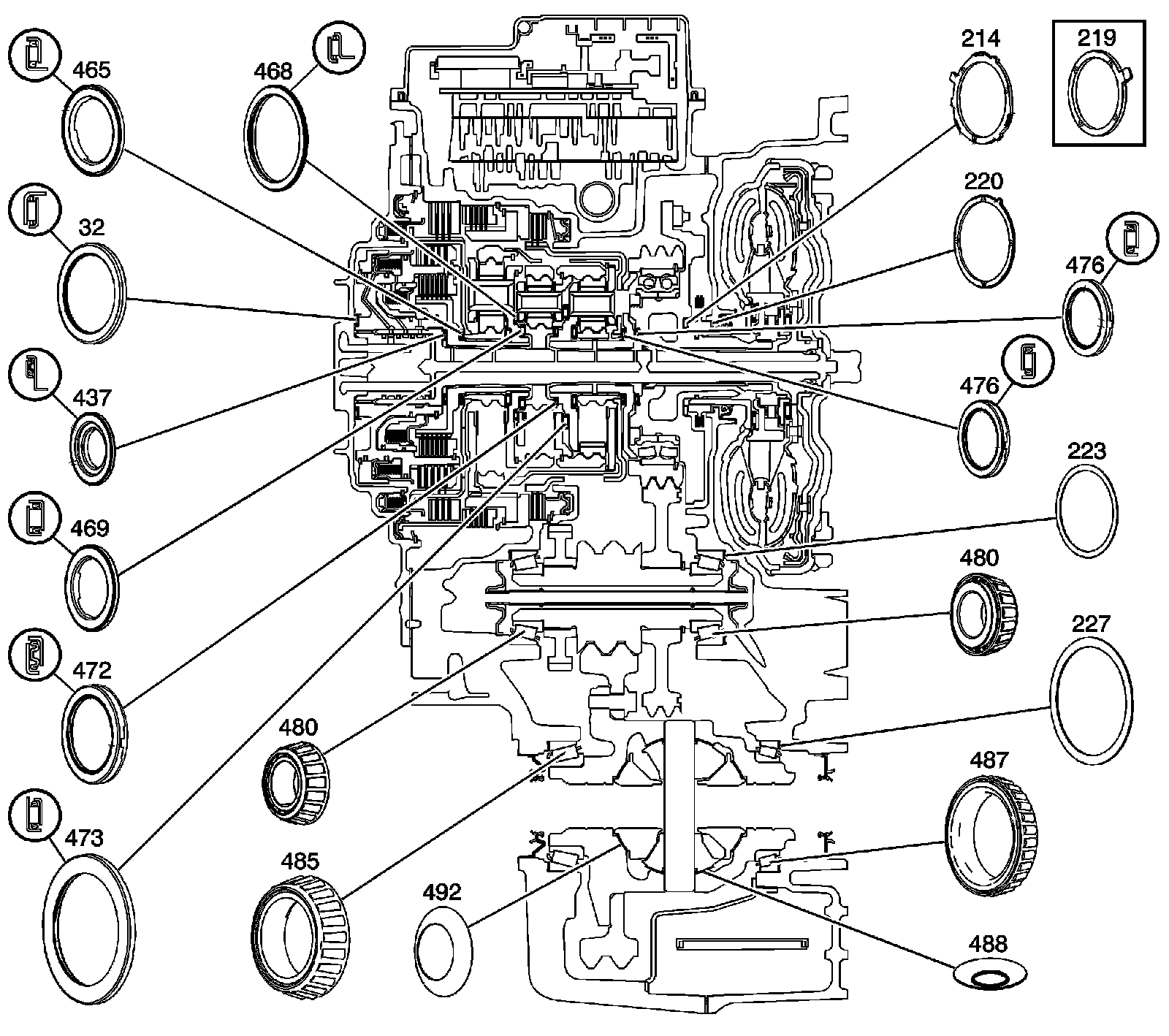

Bushing, Bearing, and Washer Locations

Bushing, Bearing, and Washer Locations

Bushing and Bearing Locations





32 - Input Shaft Thrust Bearing Assembly

214 - Drive Sprocket Thrust Washer

219 - Drive Sprocket Thrust Washer

220 - Drive Sprocket Thrust Washer

223 - Front Differential Drive Pinion Gear Bearing Thrust Washer

227 - Front Differential Bearing Thrust Washer

437 - 4-5-6 Clutch Hub Thrust Bearing Assembly

465 - 2-6 Clutch Hub Thrust Bearing

468 - Input Carrier Thrust Bearing Assembly

469 - Input Sun Gear Thrust Bearing Assembly

472 - Output Carrier Thrust Bearing Assembly

473 - Output Carrier Thrust Bearing Assembly

476 - Front Differential Transfer Drive Gear Input Hub Bearing Assembly

480 - Front Differential Drive Pinion Gear Bearing Assembly

485 - Front Differential Carrier Bearing Assembly

487 - Front Differential Carrier Bearing Assembly

488 - Front Differential Carrier Thrust Washer

492 - Front Differential Side Gear Thrust Washer
