Electronic Brake Control Module (EBCM)

Front of Vehicle/Engine Compartment Component Views

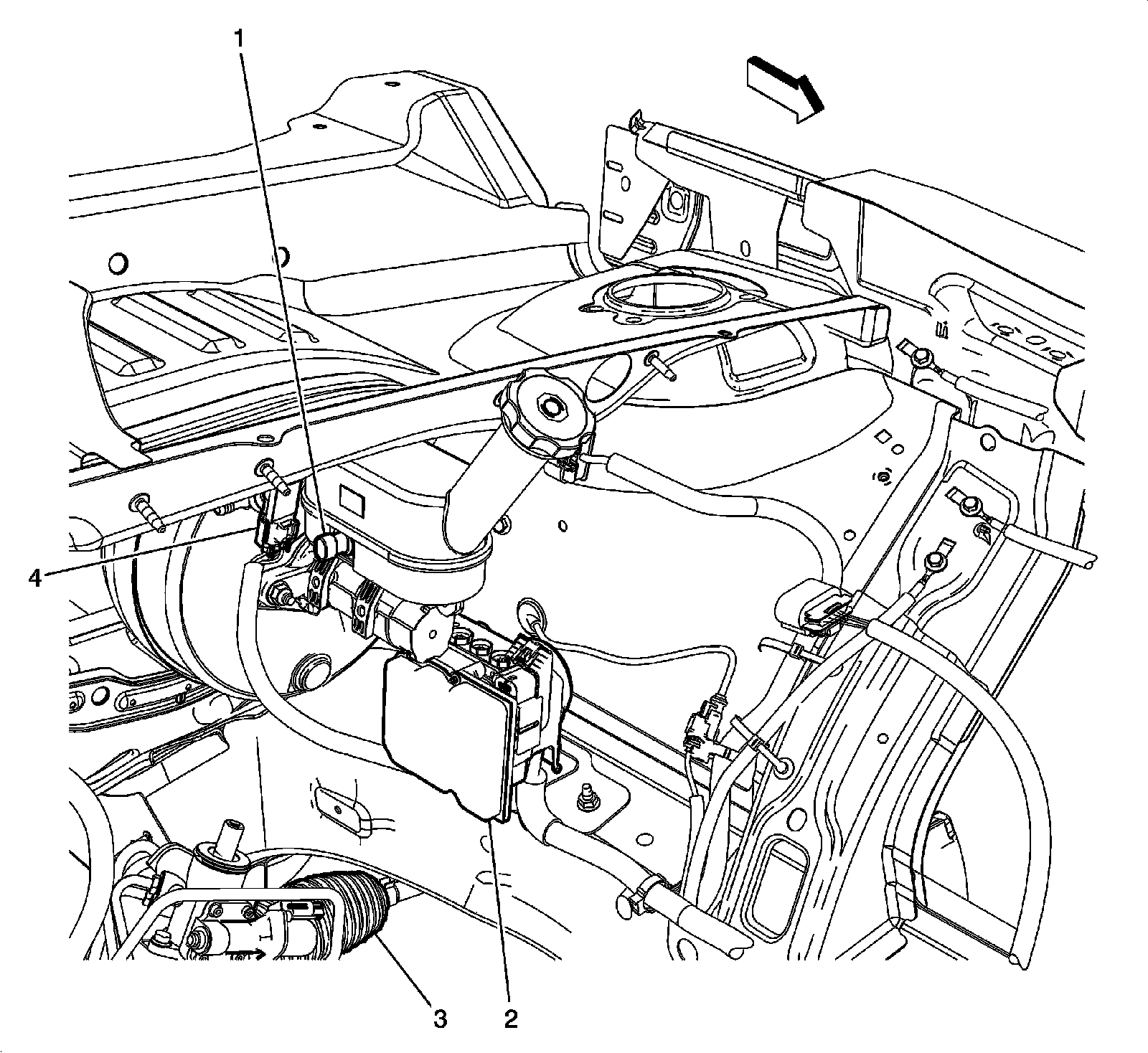

Left Side of the Engine Compartment





1 - Brake Fluid Level Switch

2 - Electronic Brake Control Module (EBCM)

3 - Variable Effort Steering Actuator (NV7)

4 - Brake Booster Vacuum Sensor
