Front Floor Console Rear Trim Panel Replacement

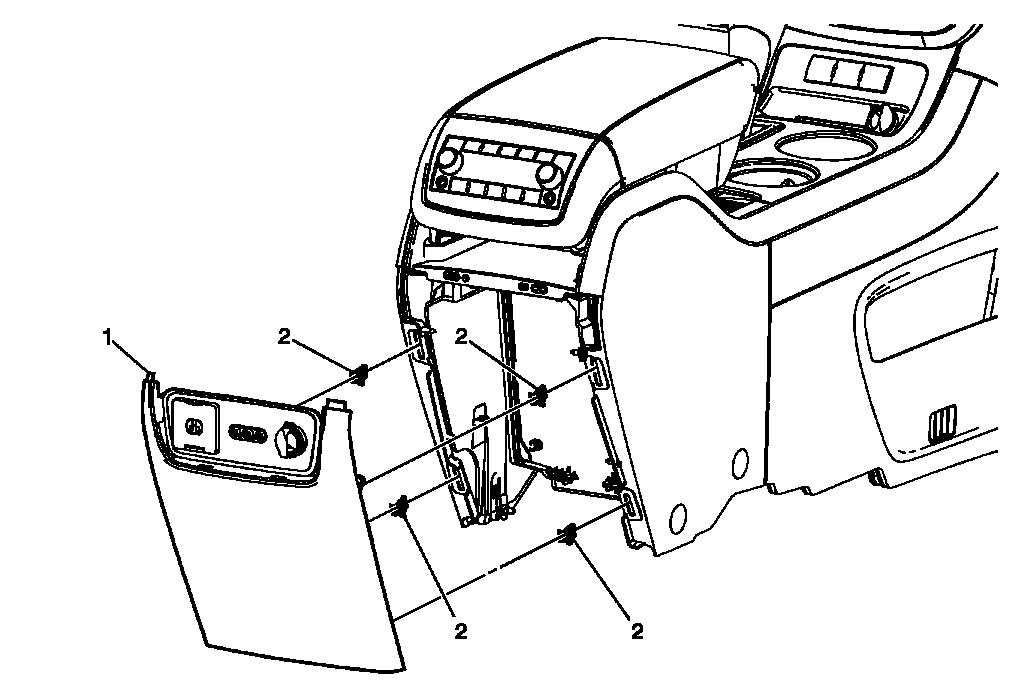

Fig 1: View Of Front Floor Console Rear Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the floor console accessory trim plate applique. Refer to Front Floor Console Accessory Trim Plate Applique Replacement .
1	Front Floor Console Rear Trim Plate Procedure Disconnect the electrical connections. When replacing the front floor console rear trim plate, transfer all necessary components.
2	Retainer Clip (Qty: 4)

Callout

Component Name

Preliminary Procedure
Remove the floor console accessory trim plate applique. Refer to Front Floor Console Accessory Trim Plate Applique Replacement .

Front Floor Console Rear Trim Plate

Procedure

Disconnect the electrical connections.
When replacing the front floor console rear trim plate, transfer all necessary components.

Retainer Clip (Qty: 4)
