Fuse Block - I/P X1

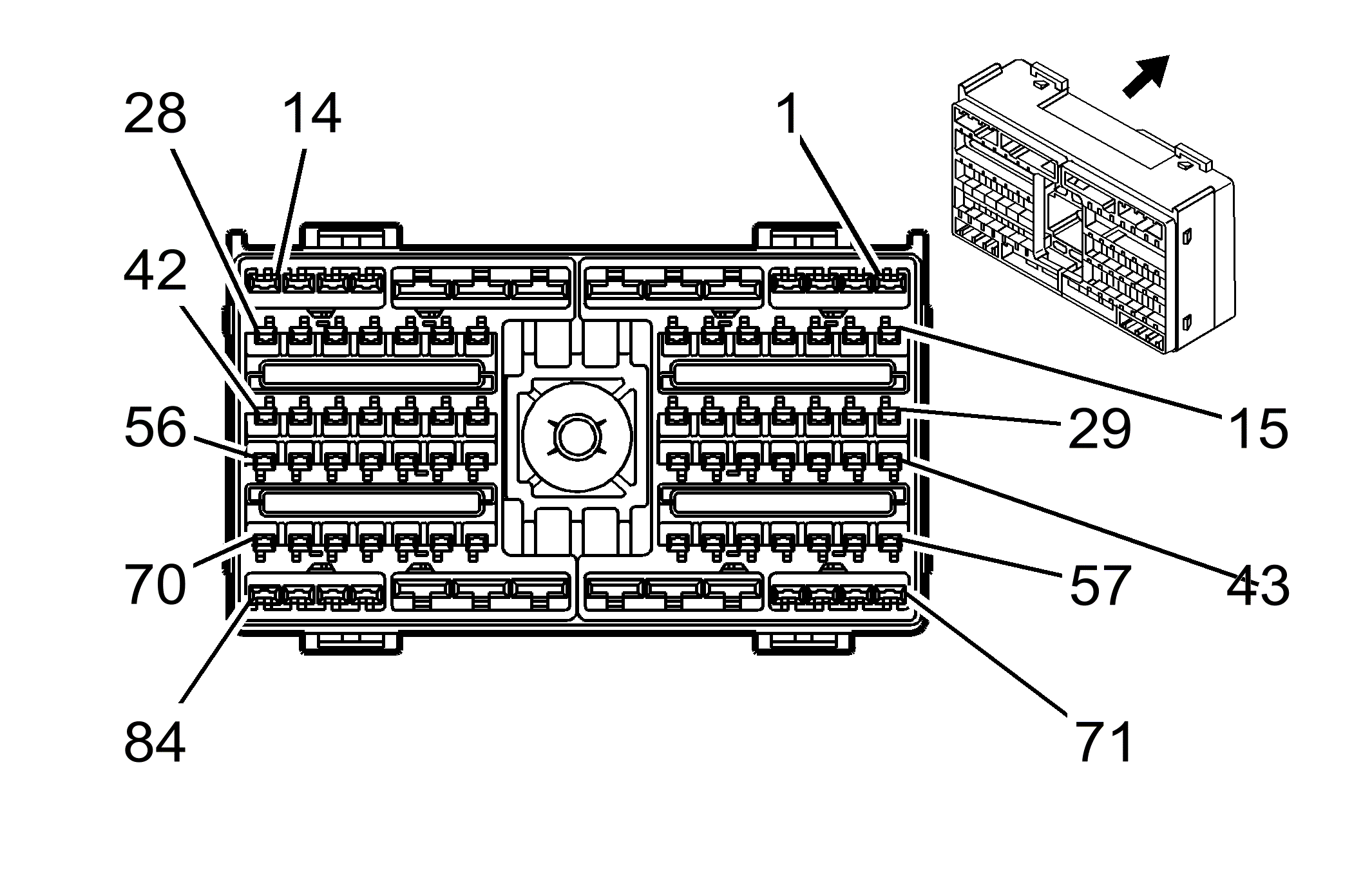

Fig 1: Fuse Block - I/P X1 Connector End VIew
GM1856803Courtesy of GENERAL MOTORS COMPANY
Fuse Block - I/P X1

Pin Wire Circuit Function
1 - - Not Used
2 2 RD/WH 2040 Battery Positive Voltage (UQA or UQS)
3 3 RD/WH 640 Battery Positive Voltage (KA1 or KB6)
4 - - Not Used
5 5 RD/BK 842 Battery Positive Voltage
6 5 RD/BK 242 Battery Positive Voltage
7 - - Not Used
8 3 RD/WH 3340 Battery Positive Voltage
2 RD/WH 3340 Battery Positive Voltage
9 2 RD/WH 3340 Battery Positive Voltage
2 RD/WH 3340 Battery Positive Voltage
10-11 - - Not Used
12 2 GY 295 Door Lock Actuator Lock Control
13 1 RD/WH 3240 Battery Positive Voltage (AXE)
14 - - Not Used
15 0.8 RD/WH 440 Battery Positive Voltage
16-17 - - Not Used
18 1 RD/WH 340 Battery Positive Voltage
19-20 - - Not Used
21 0.35 RD/WH 1840 Battery Positive Voltage
0.5 RD/WH 1840 Battery Positive Voltage (TB5)
22 0.35 D-GN 5706 Liftgate Relay High Control (TB4)
23 - - Not Used
24 0.35 YE 356 Driver Door Lock Relay Unlock Control (without AXE)
25 0.35 OG 2268 Windshield Washer Relay Control
26 0.5 RD/WH 1940 Battery Positive Voltage (DL6 or DS3)
27 0.8 D-GN 392 Rear Window Washer Pump Control
28 1 BK 750 Ground
29 0.5 RD/WH 4140 Battery Positive Voltage
30 0.35 D-BU 545 DRL Voltage
31 - - Not Used
32 0.5 PK 1139 Ignition Voltage
33 0.5 RD/WH 2340 Battery Positive Voltage (ULD)
34 0.8 RD/WH 2140 Battery Positive Voltage
35 - - Not Used
36 0.35 PU 544 DRL Relay Control (T61)
37 0.8 RD/WH 840 Battery Positive Voltage (AXE)
38 0.35 L-GN 1391 Driver Door Unlock Relay Control
39 0.5 L-GN 2270 Rear Window Washer Relay Control
40 0.5 L-BU 6128 Liftgate Latch Release (TB4)
41 - - Not Used
42 1 RD/WH 3840 Battery Positive Voltage
43 0.5 GY 391 Rear Window Wiper Switch Signal
44 0.5 OG 228 Windshield Washer Pump Control
45 0.35 RD/WH 3140 Battery Positive Voltage (UG1)
0.35 RD/WH 3140 Battery Positive Voltage (AG3)
46 0.5 PK 1139 Ignition Voltage
47 0.5 RD/WH 2340 Battery Positive Voltage (U2K or UBS)
0.5 RD/WH 2340 Battery Positive Voltage (U42)
48 0.35 D-BU 5364 Left DRL/Turn Voltage
49 0.35 TN 28 Horn Relay Control
50 0.35 RD/WH 1340 Battery Positive Voltage
51 - - Not Used
52 1 RD/WH 640 Battery Positive Voltage (KA1 without A45)
53 1 TN 294 Door Lock Actuator Unlock Control
54 1 TN 694 Driver Door Lock Actuator Unlock Control (without AXE)
55-56 - - Not Used
57 0.35 OG 300 Power Mode
0.35 OG 300 Power Mode (U80)
58 1 RD/WH 240 Battery Positive Voltage
59 0.35 RD/WH 3140 Battery Positive Voltage (UD7)
60-62 - - Not Used
63 0.35 TN 28 Horn Relay Control
64 0.35 L-BU 5921 Driver Door Unlock Relay Control
65 0.5 PU 359 DRL Voltage (T61)
66-68 - - Not Used
69 0.35 YE 5704 Liftgate Relay Low Control (TB4)
70-75 - - Not Used
76 5 RD/BK 642 Battery Positive Voltage
77 3 RD/WH 1140 Battery Positive Voltage (AG1 or AG3 or AH5)
78 3 RD/WH 3040 Battery Positive Voltage (AG2 or AAQ)
79 2 RD/WH 4040 Battery Positive Voltage (N38)
80-84 - - Not Used
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 7287-2994-3W
  • Service Connector: 13504281
  • Description: 84-Way F YESC Kaizen Series (BK)
Terminal Part Information
  • Pins: 2, 12
  • Terminated Lead: 13575839
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-35 (VT)
  • Terminal/Tray: 7116-4112-02/9
  • Core/Insulation Crimp: C/D
  • Pins: 5, 6, 8, 9, 76-78
  • Terminated Lead: 13575835
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-42 (RD)
  • Terminal/Tray: 7116-4122-02/10
  • Core/Insulation Crimp: Pins: 5, 6, 76 - D/G
  • Core/Insulation Crimp: Pins: 8, 77, 78 - A/B
  • Core/Insulation Crimp: Pins: 9 - Not Available
  • Pins: 3
  • Terminated Lead: 13575832
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-35 (VT)
  • Terminal/Tray: 7116-4112-02/9
  • Core/Insulation Crimp: C/D
  • Pins: 13
  • Terminated Lead: 13575838
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-35 (VT)
  • Terminal/Tray: 7116-4111-02/9
  • Core/Insulation Crimp: C/A
  • Pins: 15, 18, 21, 27, 34, 37, 42, 45, 47, 53, 54, 57, 58
  • Terminated Lead: 13575850
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 7116-4101-08/9
  • Core/Insulation Crimp: Pins: 15, 18, 27, 34, 37, 42, 53, 54, 58 - E/A
  • Core/Insulation Crimp: Pins: 21, 45, 47, 57 - Not Available
  • Pins: 21, 22, 24-26, 29, 30, 32, 32, 36, 38-40, 43-50, 57, 59, 63-65, 69
  • Terminated Lead: 13575850
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 7116-4100-08/9
  • Core/Insulation Crimp: E/C
  • Pins: 79
  • Terminated Lead: 13578928
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-42 (RD)
  • Terminal/Tray: 7116-4121-02/10
  • Core/Insulation Crimp: C/B
