Front Fog Lamp Replacement (Traverse)

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

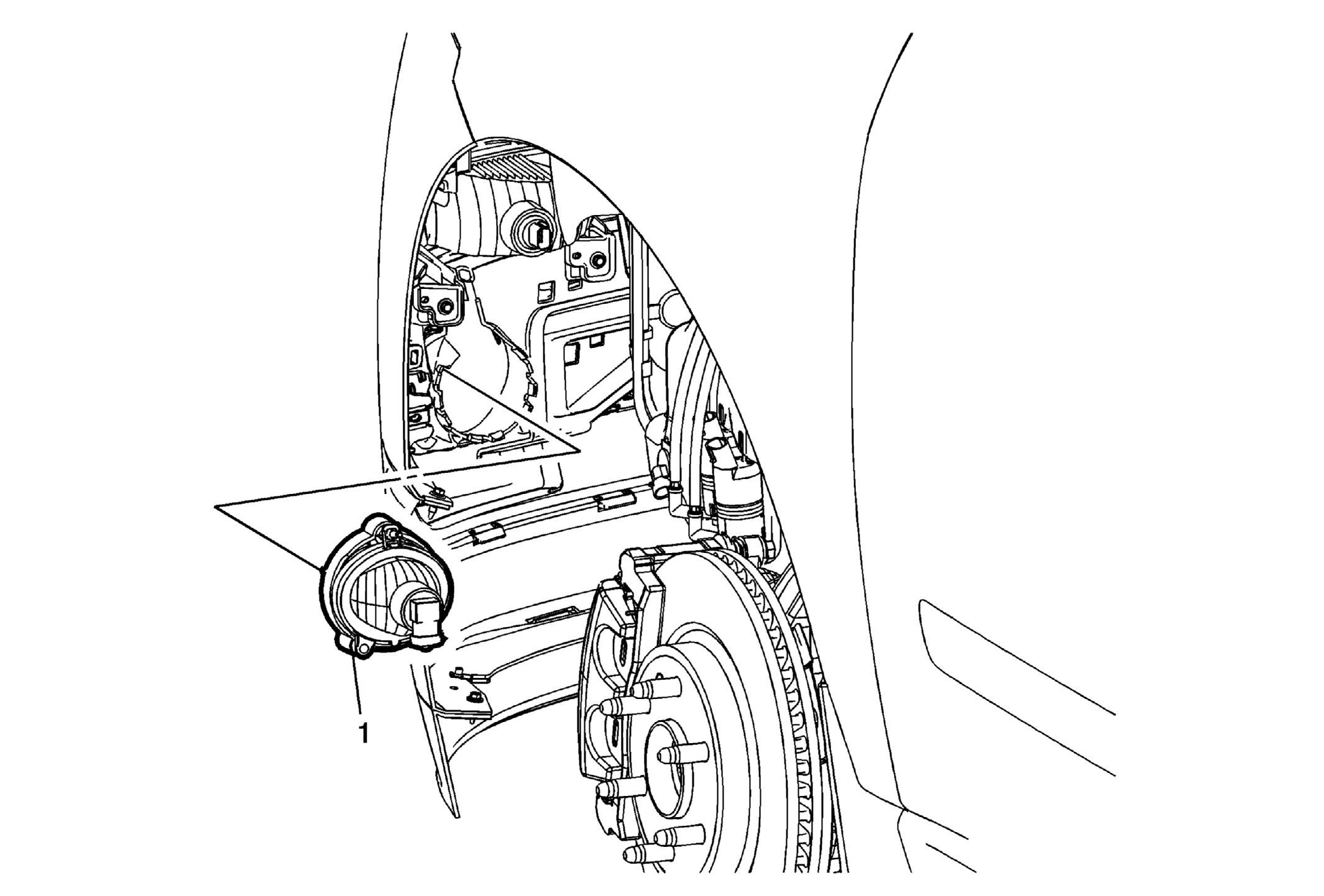

Fig 1: Front Fog Lamp (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) Remove the front bumper fascia outer grille. Refer to Front Bumper Fascia Outer Grille Replacement (Traverse) .
1	Front Fog Lamp Procedure Disconnect the electrical connector. Using a plastic flatbladed tool release the 8 locking tabs from the front fog lamp and pull from the front bumper fascia.

Callout

Component Name

Preliminary Procedure

Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse)
Remove the front bumper fascia outer grille. Refer to Front Bumper Fascia Outer Grille Replacement (Traverse) .

Front Fog Lamp

Procedure

Disconnect the electrical connector.
Using a plastic flatbladed tool release the 8 locking tabs from the front fog lamp and pull from the front bumper fascia.
