Windshield Washer Nozzle Replacement (Traverse)

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

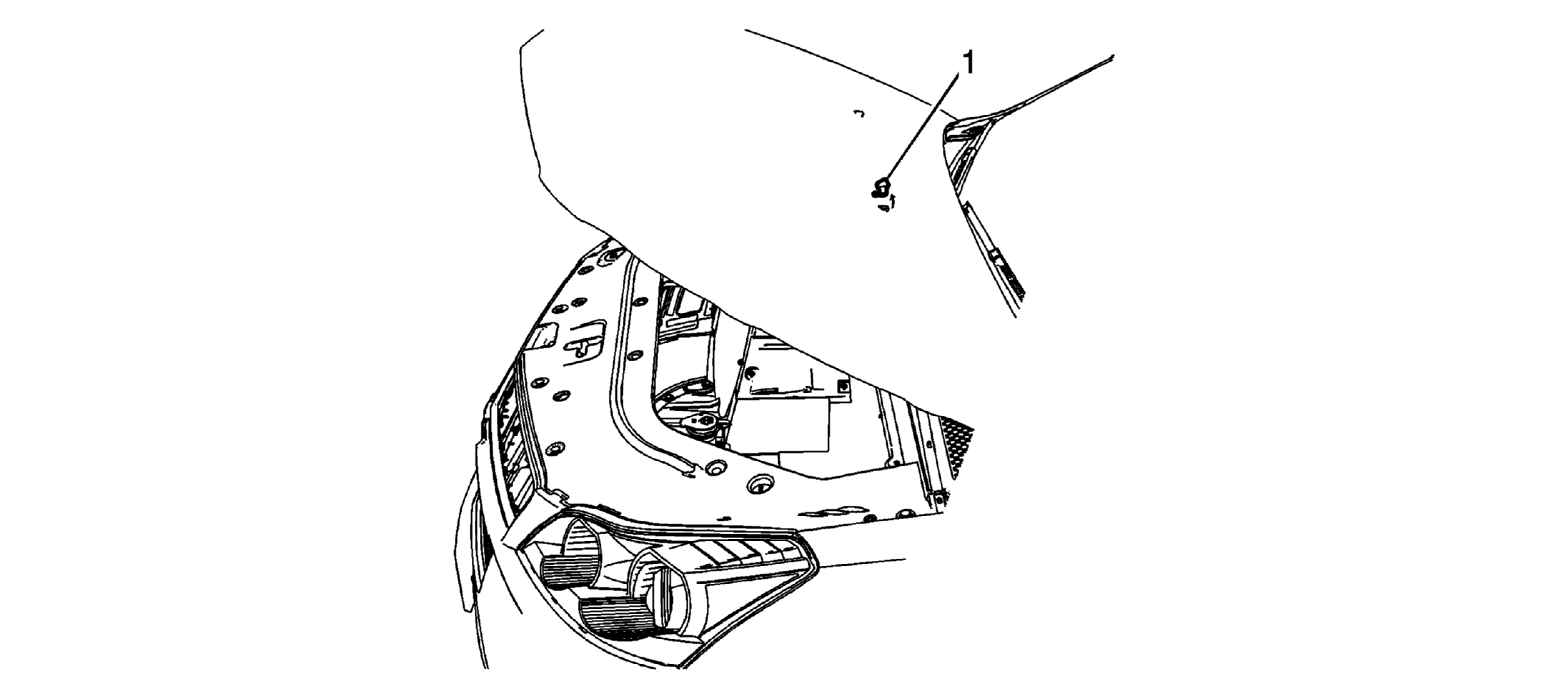

Fig 1: Windshield Washer Nozzle (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the hood insulator. Refer to Hood Insulator Replacement (Enclave) or Hood Insulator Replacement (Traverse) . Disconnect the windshield washer hose from both washer nozzles.
1	Windshield Washer Nozzle (Qty: 2) Procedure If equipped with heated washer nozzles, disconnect the electrical connectors. Pinch the retainers on the underside of the washer nozzles. Push the nozzles outward from the hood in order to remove.

Callout

Component Name

Preliminary Procedures

Remove the hood insulator. Refer to Hood Insulator Replacement (Enclave) or Hood Insulator Replacement (Traverse) .
Disconnect the windshield washer hose from both washer nozzles.

Windshield Washer Nozzle (Qty: 2)

Procedure

If equipped with heated washer nozzles, disconnect the electrical connectors.
Pinch the retainers on the underside of the washer nozzles.
Push the nozzles outward from the hood in order to remove.
