Installation Procedure

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

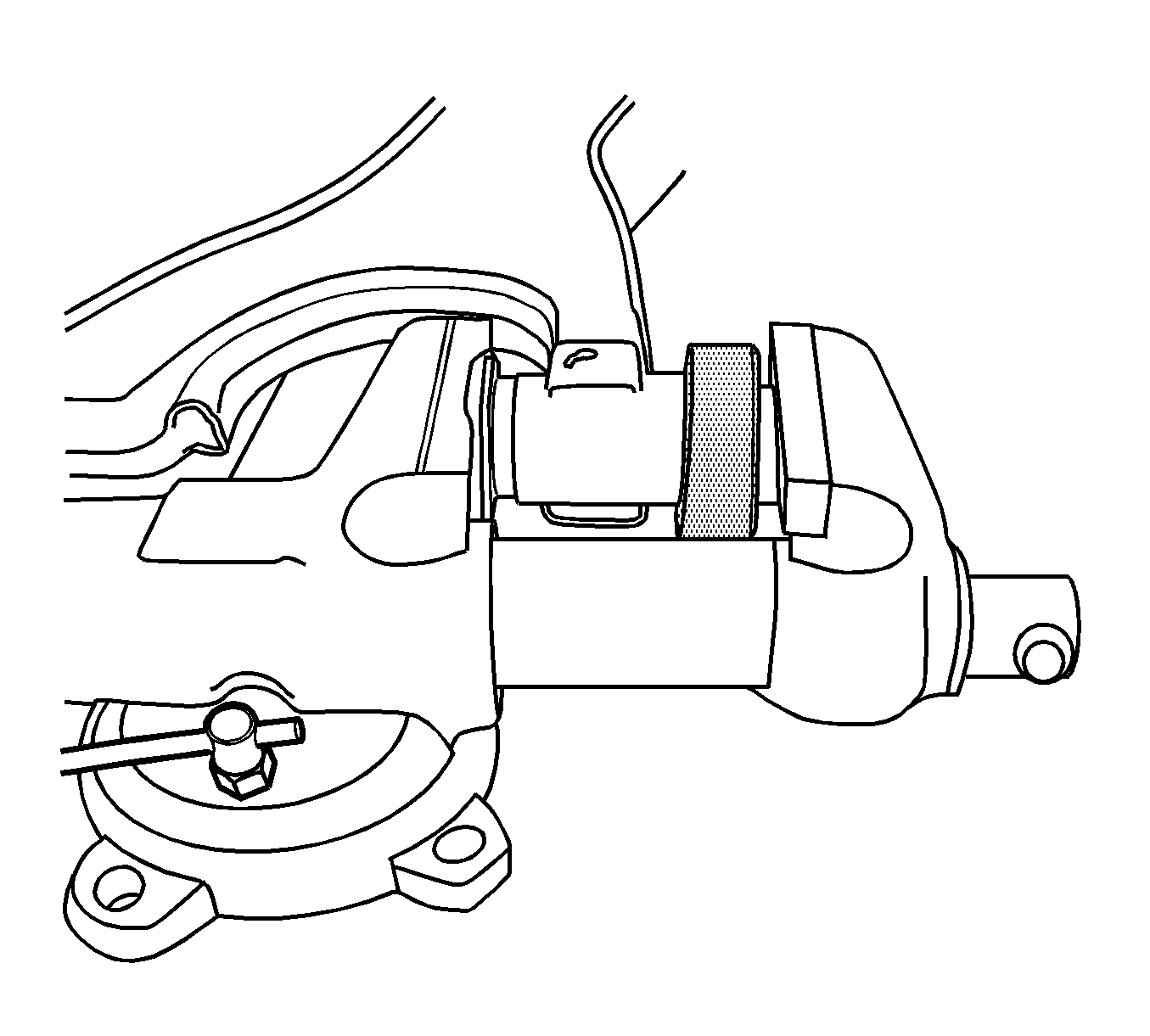

Fig 1: Front And Rear Bushings

Courtesy of GENERAL MOTORS COMPANY

Position the front and rear bushings so that they are equally in the control arm.
Position the CH-48107 Bushing Remover and Installer on the front bushing.
Using the vise, compress the front and rear bushings until they are seated.
Remove the lower control arm from the vise.
Remove the CH-48107 Bushing Remover and Installer from the front bushing.
Install the lower control arm in the vehicle. Refer to Lower Control Arm Replacement .
