Installation Procedure

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

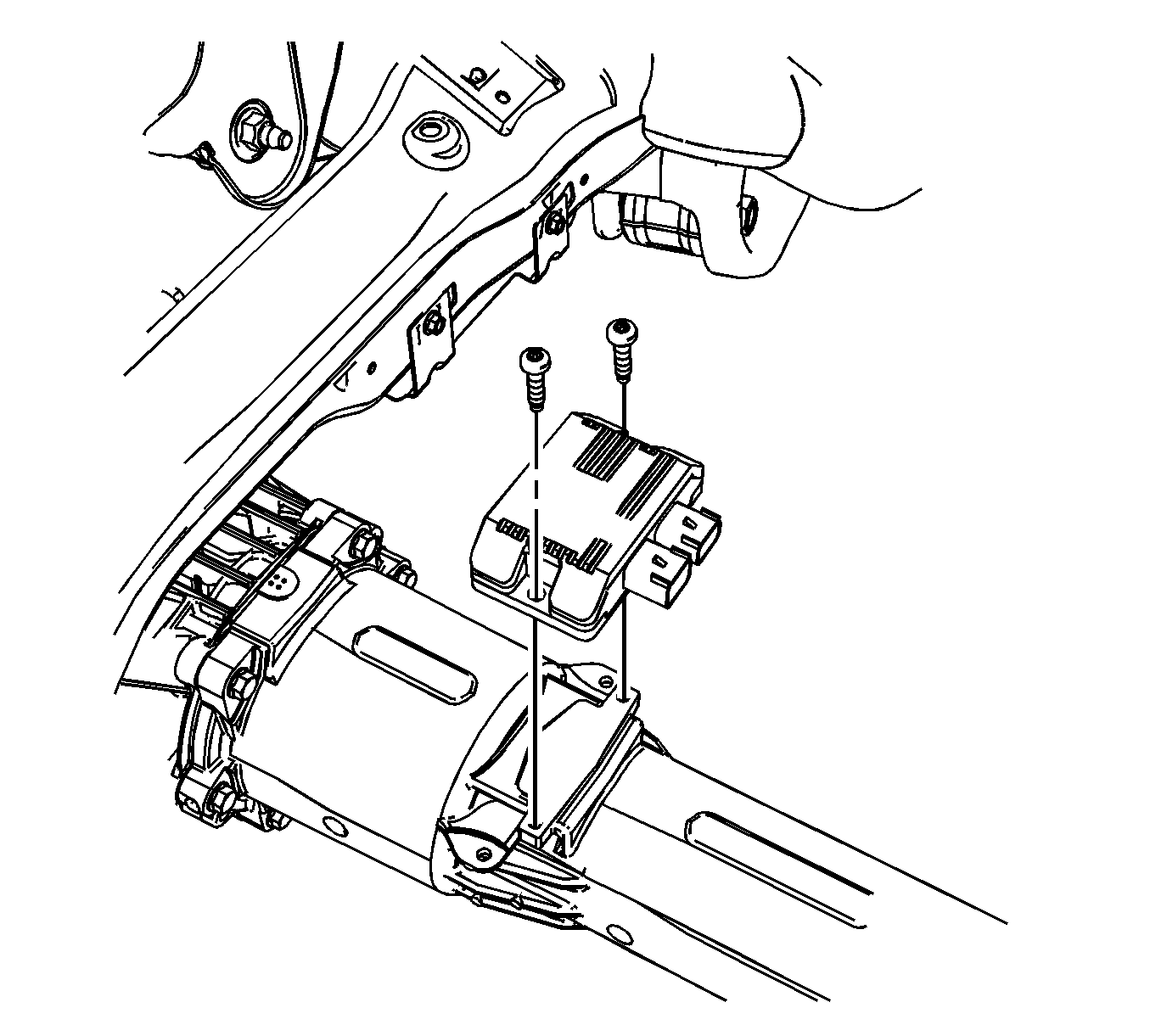

    Fig 1: Clutch Control Module Screws
    GM1848855Courtesy of GENERAL MOTORS COMPANY
  1. Position the clutch control module on the torque tube.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the mounting screws for the clutch control module.

    Tighten

    Tighten the screws to 8 N.m (71 lb in).

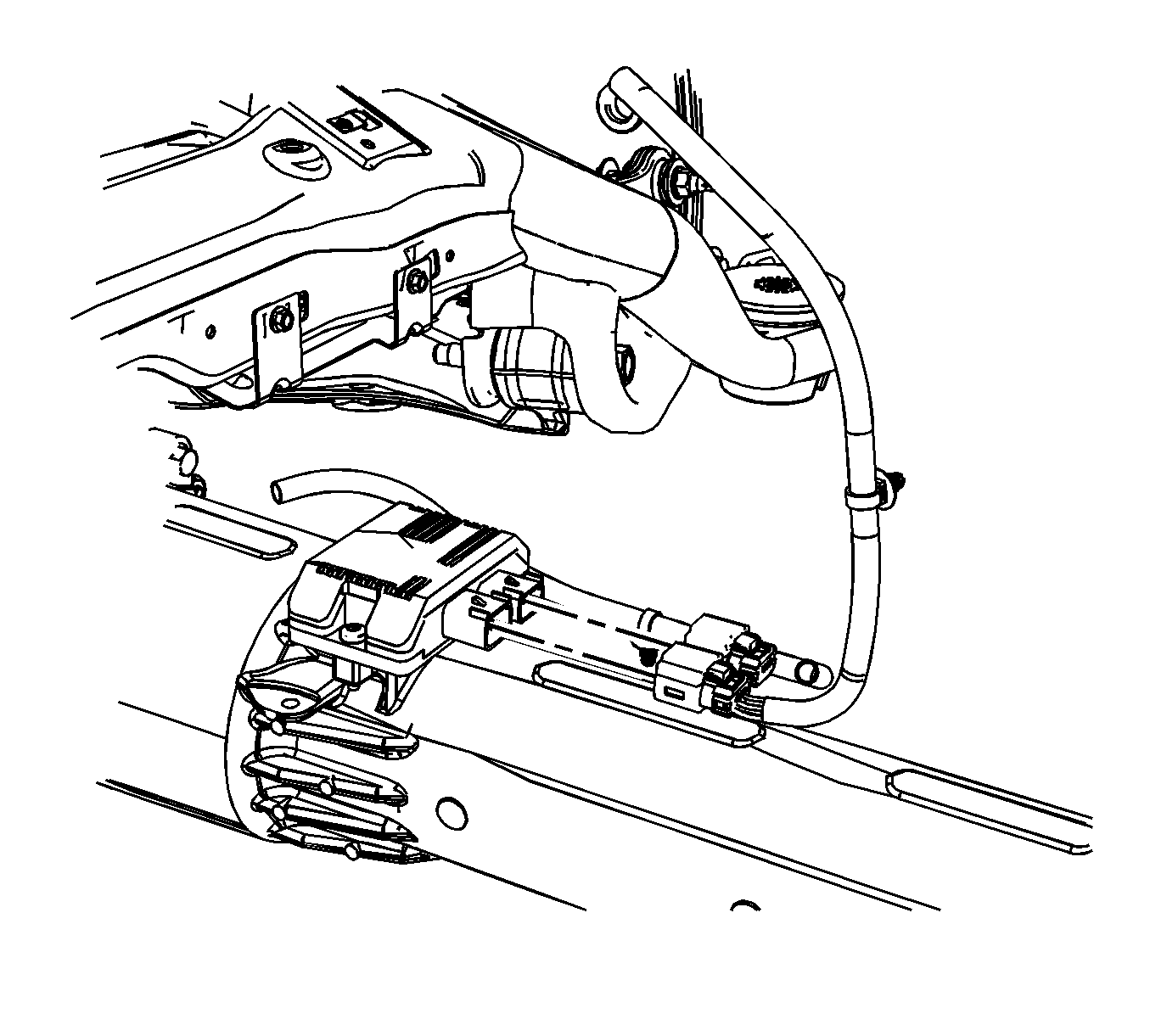

    3. Fig 2: Clutch Control Module Electrical Connectors
    GM1848846Courtesy of GENERAL MOTORS COMPANY
  3. Reconnect the electrical connectors for the clutch control module.

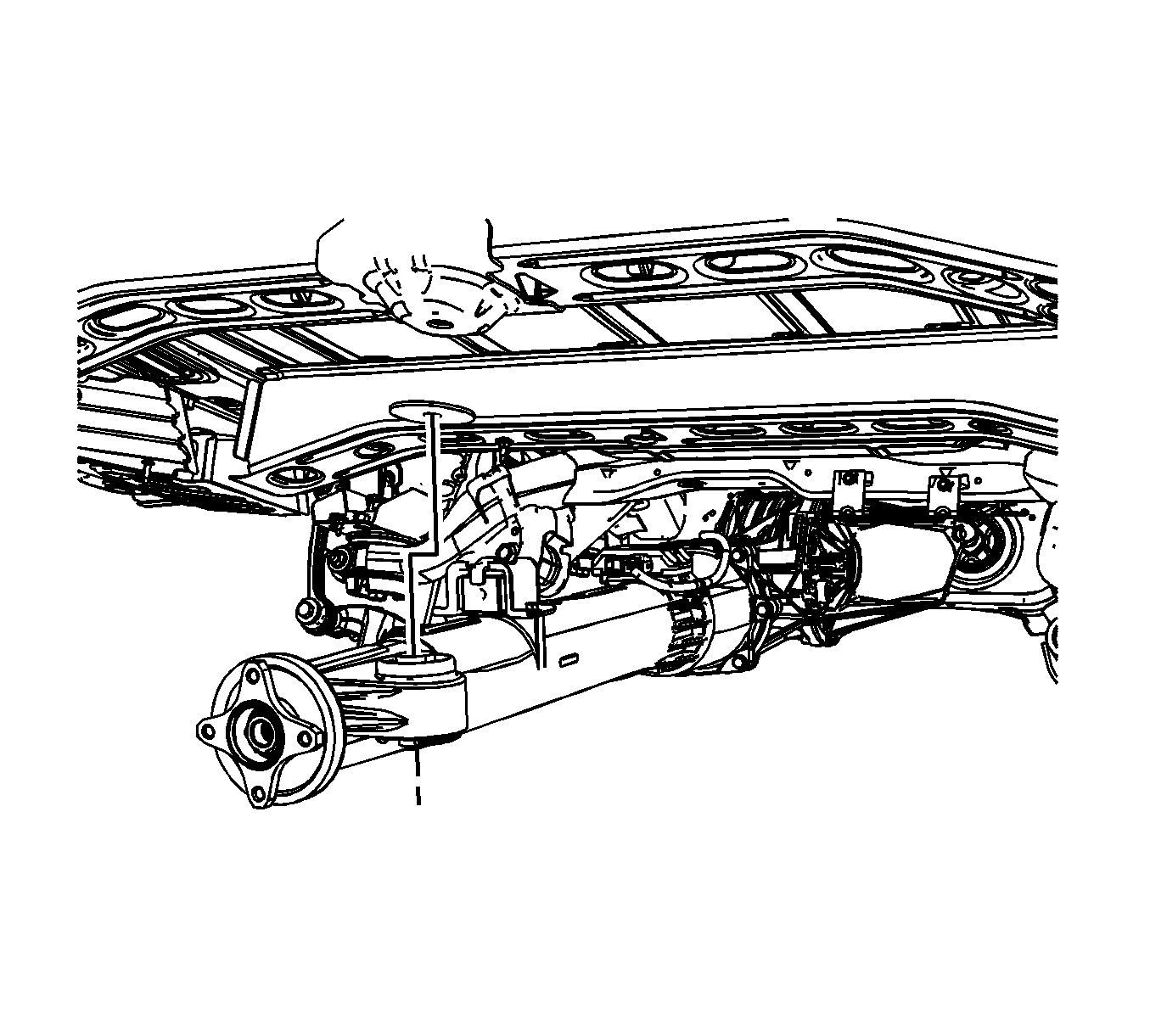

    4. Fig 3: Torque Tube
    GM1848899Courtesy of GENERAL MOTORS COMPANY
  4. Lift the torque back into position.

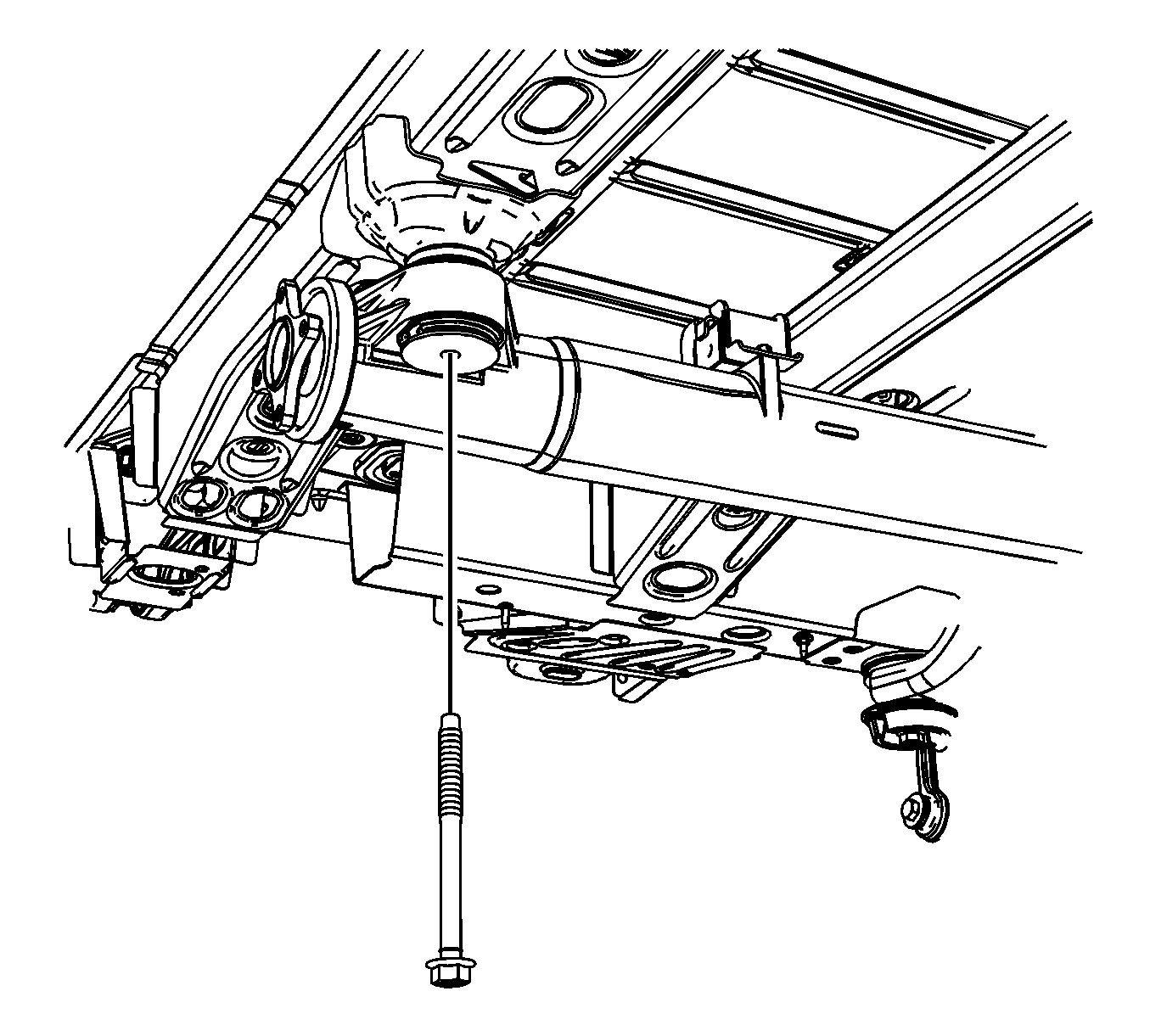

    5. Fig 4: Torque Tube Mounting Bolt
    GM1848880Courtesy of GENERAL MOTORS COMPANY
  5. Install the torque tube mounting bolt.

    Tighten

    Tighten the bolt to 185 N.m (137 lb ft).

  6. Install the propeller shaft. Refer to Propeller Shaft Replacement
  7. Remove the support and lower the vehicle.
  8. Reprogram the clutch control module. Refer to Control Module References .
