Radio Control Assembly Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

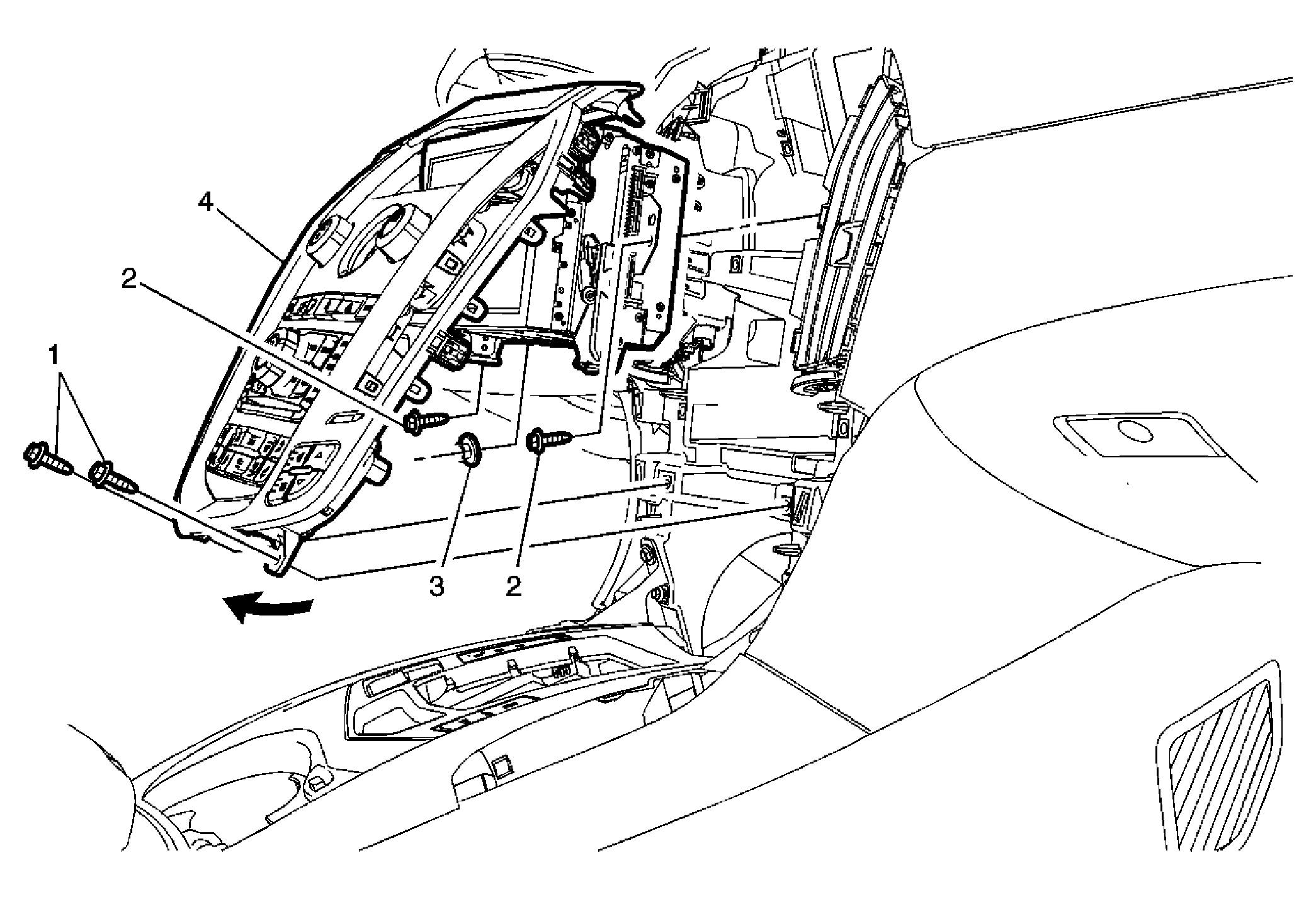

Fig 1: Identifying Radio Control Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front floor console trim plate assembly. Refer to Front Floor Console Trim Plate Replacement Remove the instrument panel center compartment. Refer to Instrument Panel Center Compartment Replacement .
1	Radio Control Screws (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
2	Radio, Video, Audio Disc Player, and Navigation Display Screws (Qty: 2) CAUTION: Refer to Fastener Caution . Tip: To access the display fasteners, position the radio control assembly forward from the bottom. The display must be removed with the radio control assembly in order to remove the display bezel.
3	Radio, Video, Audio Disc Player, and Navigation Display Nut
4	Radio Control Assembly Procedure Disconnect the electrical connections. When replacing the radio control assembly, transfer all necessary components. Refer to Control Module References for programming and setup information.
