Rear Window Defogger System Components
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
The rear window defogger system consists of the following components:
- HVAC Control Module
- Info Display Module
- Rear Defogger Relay
- Rear Defogger Grid
- Driver Outside Rearview Mirror
- Passenger Outside Rearview Mirror
- 30A Fuse

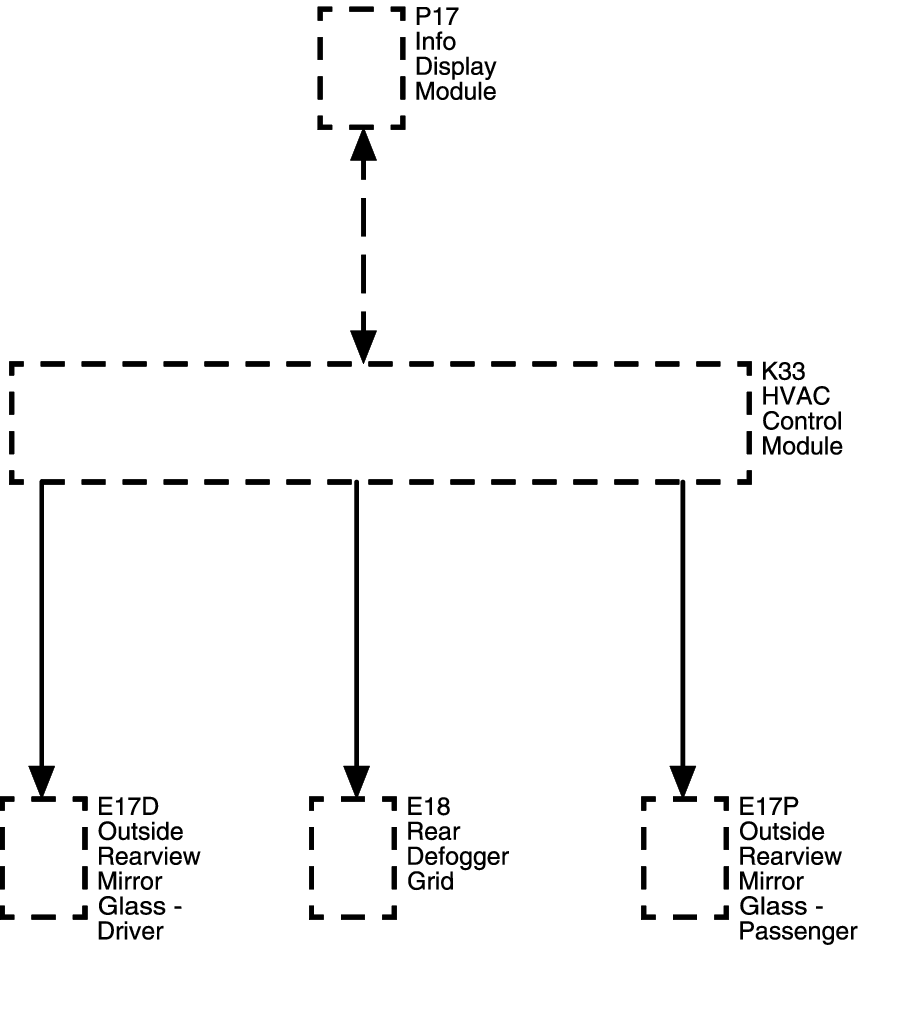

| Callout | Component Name |
|---|---|
| E17D | E17D Outside Rearview Mirror Glass - Driver |
| E18 | E18 Rear Defogger Grid |
| E17P | E17P Outside Rearview Mirror Glass - Passenger |
| P17 | P17 Info Display Module |
| K33 | K33 HVAC Control Module |
