Front Lower Control Arm Bushing Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

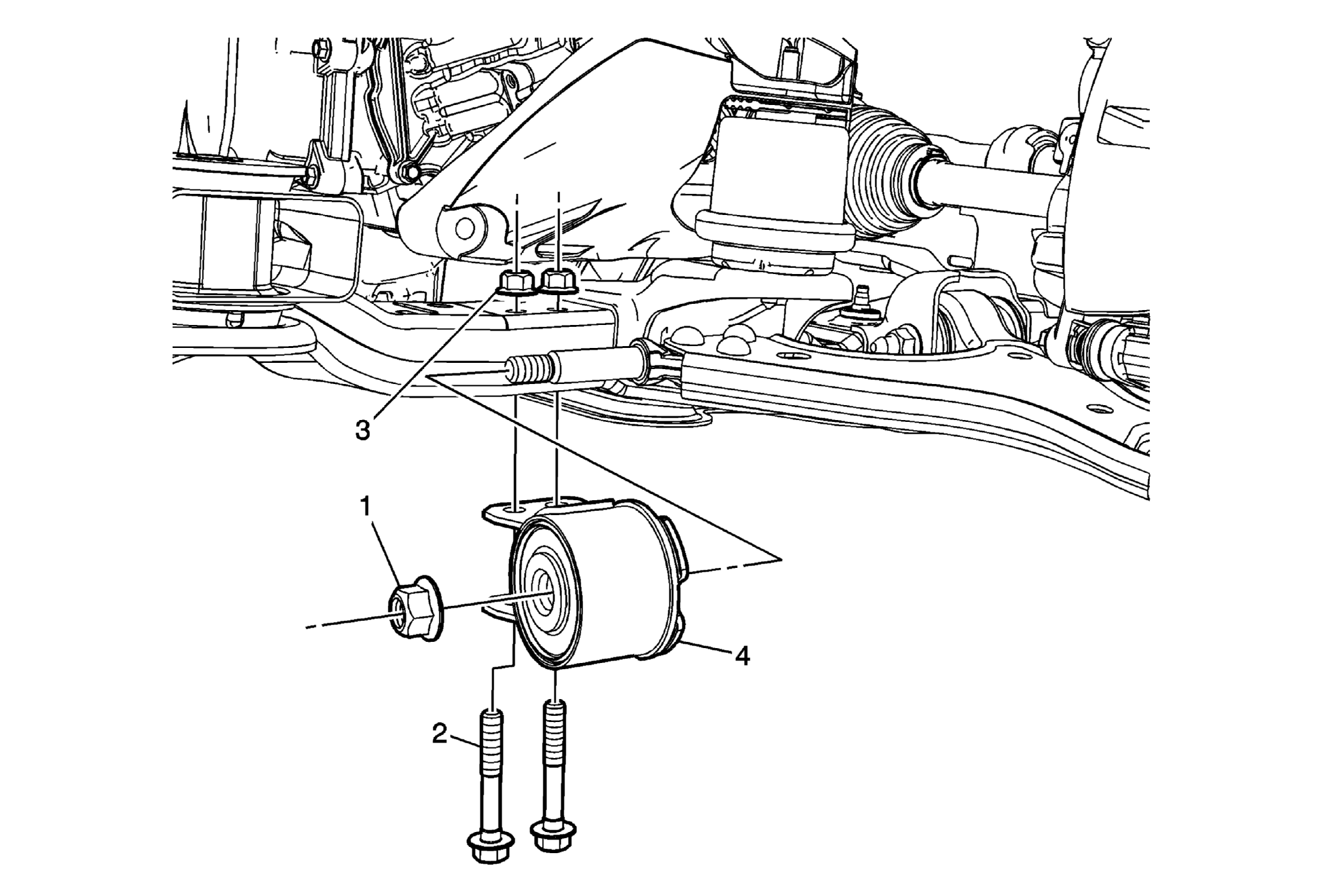

Fig 1: Front Lower Control Arm Bushing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
1	Front Lower Control Arm Bushing Nut CAUTION: Refer to Fastener Caution . Tighten 195 N.m (144 lb ft)
2	Front Lower Control Arm Bushing Bolt (Qty: 2) NOTE: When tightening the bolt to specifications, hold the bolt and torque the nut for the proper torque.
3	Lower Control Arm Front Bushing Nut (Qty: 2) Tighten 75 N.m (55 lb ft)
4	Front Lower Control Arm Bushing NOTE: The control arm bushing is NOT serviced separately, but with the mounting bracket.
