Right Front of Engine Components

Powertrain Component Views

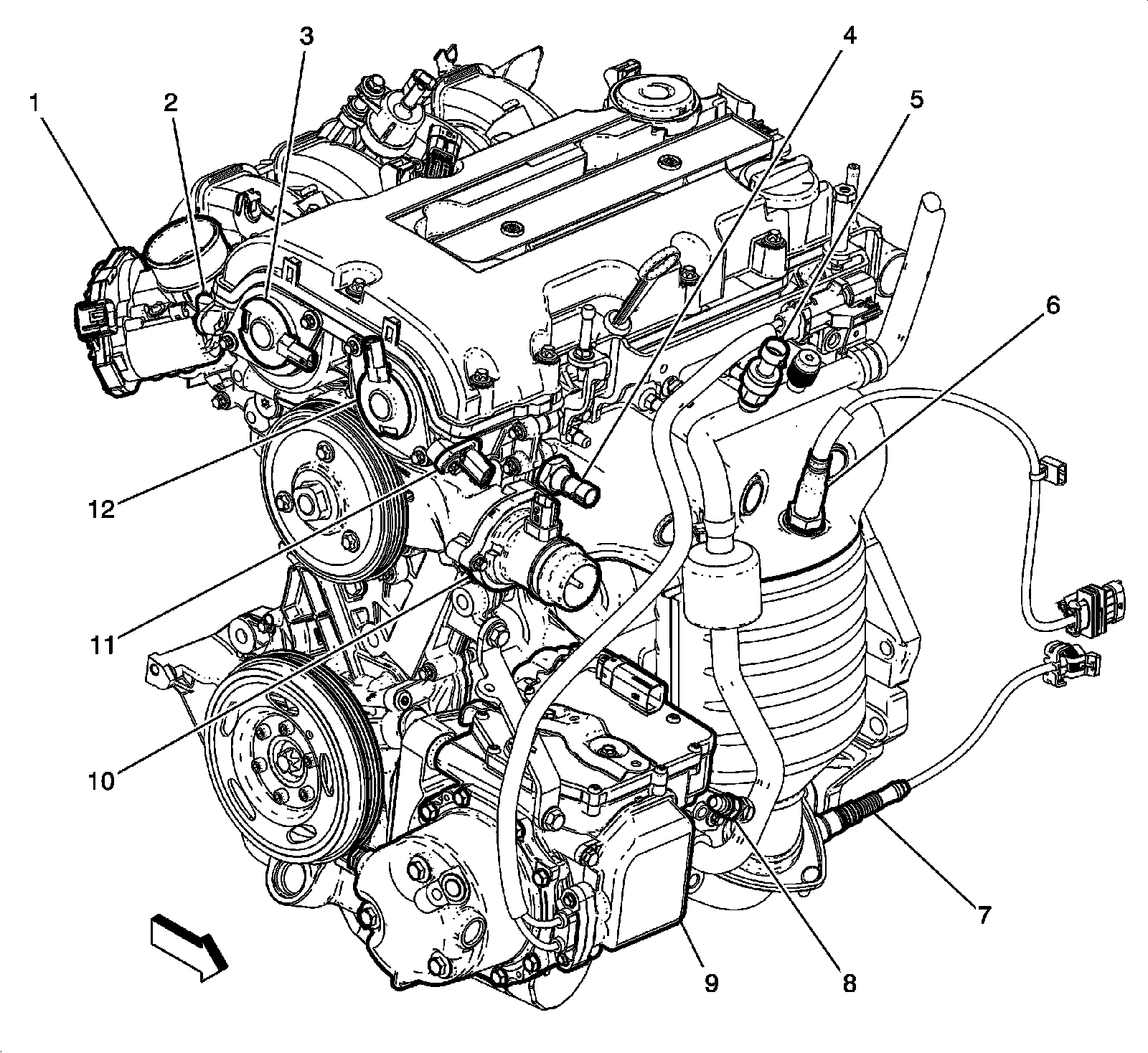

Right Front of Engine Components




1 - Q38 Throttle Body
2 - B23F Camshaft Position Sensor - Intake
3 - Q6F Camshaft Position Actuator Solenoid Valve - Intake
4 - B37 Engine Oil Pressure Switch
5 - B1C A/C Low Side Pressure Sensor
6 - B52A Heated Oxygen Sensor 1
7 - B52B Heated Oxygen Sensor 2
8 - B222 A/C Refrigerant Low Side Temperature Sensor
9 - G1 A/C Compressor
10 - E41 Engine Coolant Thermostat Heater
11 - B23E Camshaft Position Sensor - Exhaust
12 - Q6E Camshaft Position Actuator Solenoid Valve - Exhaust
