Radio/HVAC Controls (without UDY - Touch Screen)

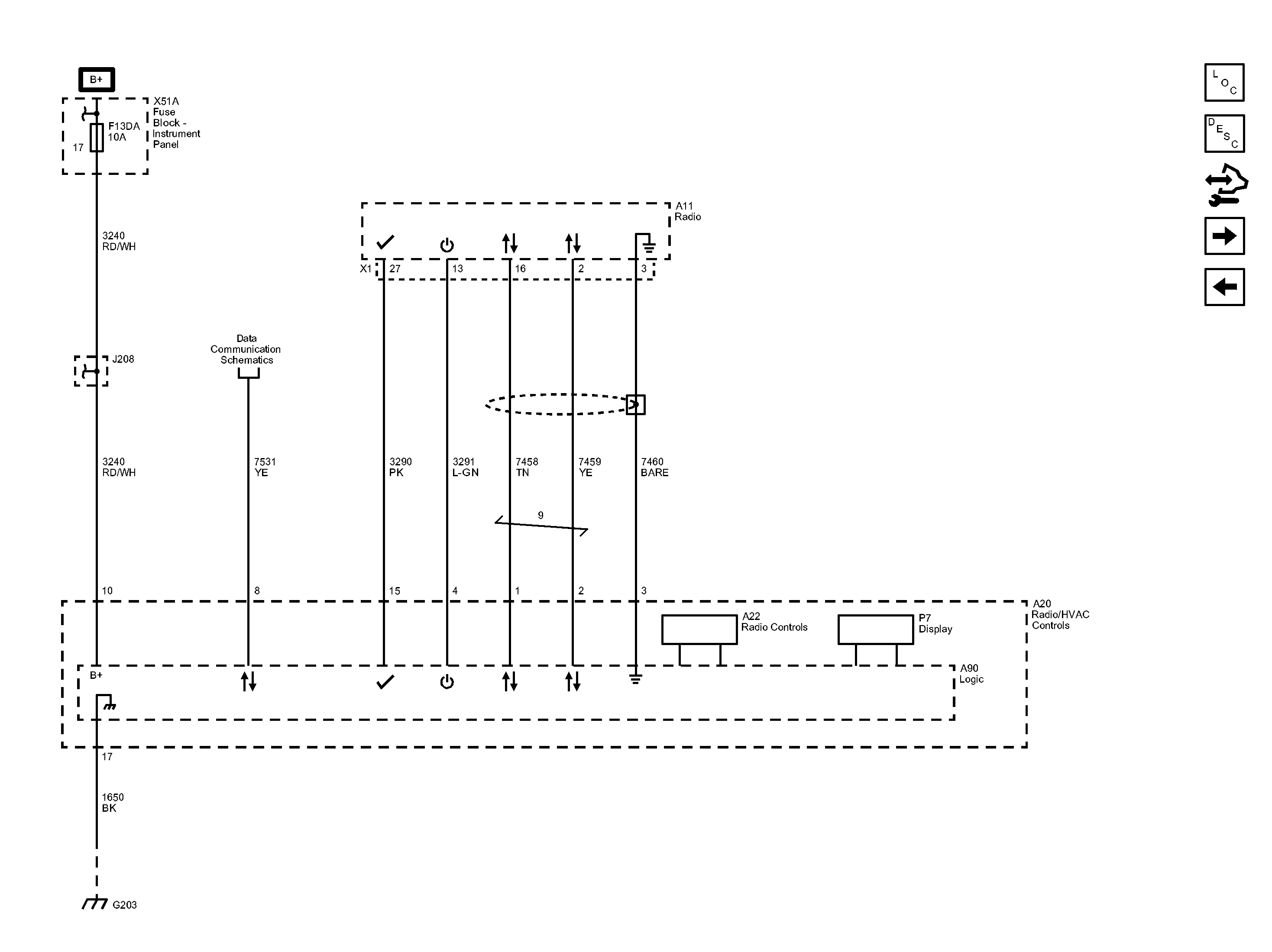

Fig 1: Radio/HVAC Controls (without UDY) Wiring Schematic
GM2785845Courtesy of GENERAL MOTORS COMPANY
