Auxiliary Audio Input (With USR - USB)

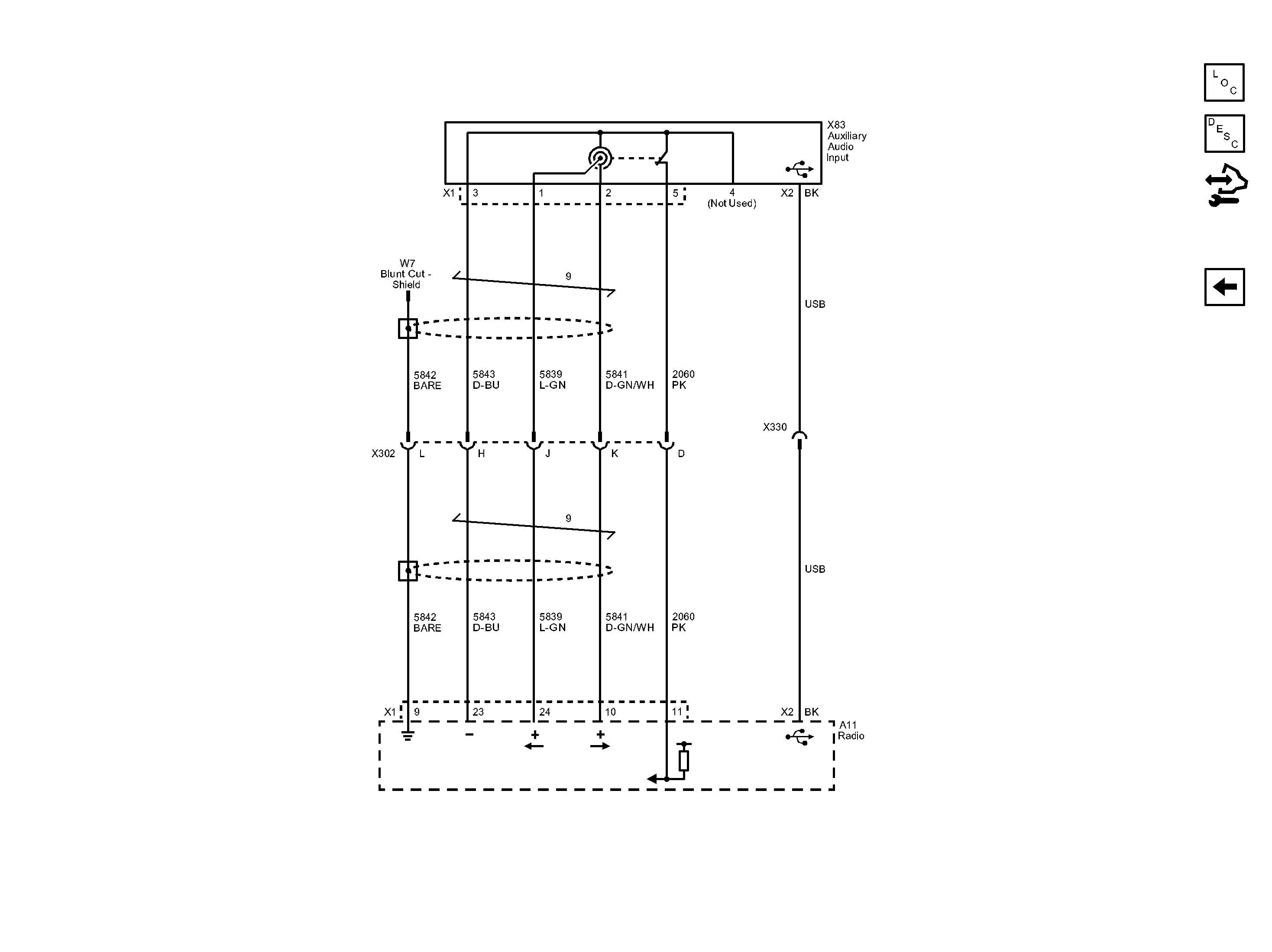

Fig 1: Auxiliary Audio Input (With USR - USB) Wiring Schematic
GM2785855Courtesy of GENERAL MOTORS COMPANY
