S2L Transmission Manual Shift Switch Connector End View - Left (MYB or MYC)

WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

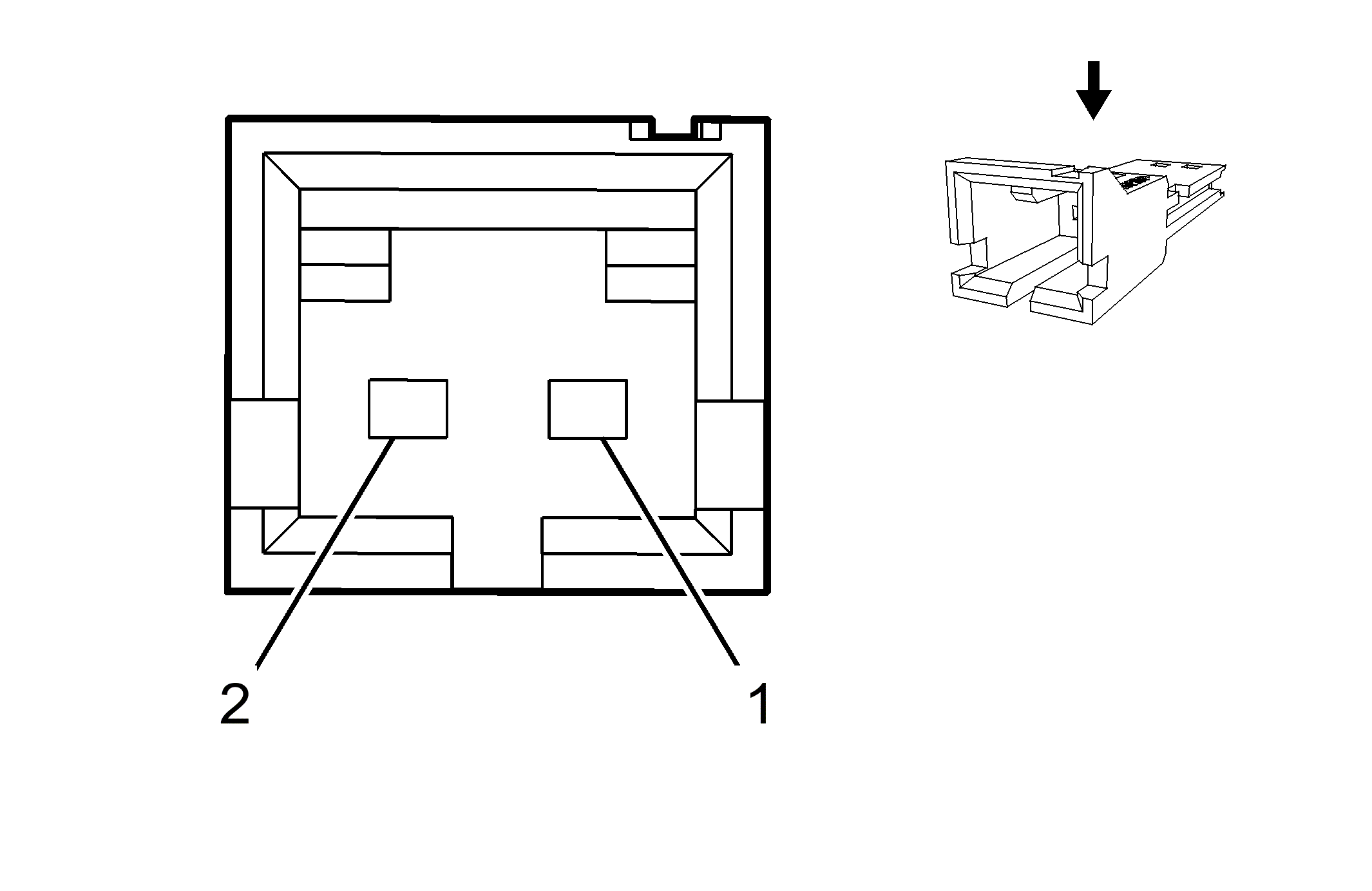

Fig 1: S2L Transmission Manual Shift Switch Connector End View - Left (MYB or MYC)

Courtesy of GENERAL MOTORS CORP.

S2L Transmission Manual Shift Switch - Left (MYB or MYC)

Pin	Wire	Circuit	Function
1	0.35 PU	5526	Tap Up/Tap Down Switch Signal
2	0.35 D-BU/RD	5525	Tap Up/Tap Down Enabled Signal

Connector Part Information

Harness Type: Steering Wheel
OEM Connector: 103653-1
Service Connector: Service by Harness - See Part Catalog
Description: 2-Way M MTE Series (BK)

Terminal Part Information

Terminal/Tray: Service by Harness - See Part Catalog
Core/Insulation Crimp: Not Available
Release Tool: Not Available
Test Probe: Not Available
