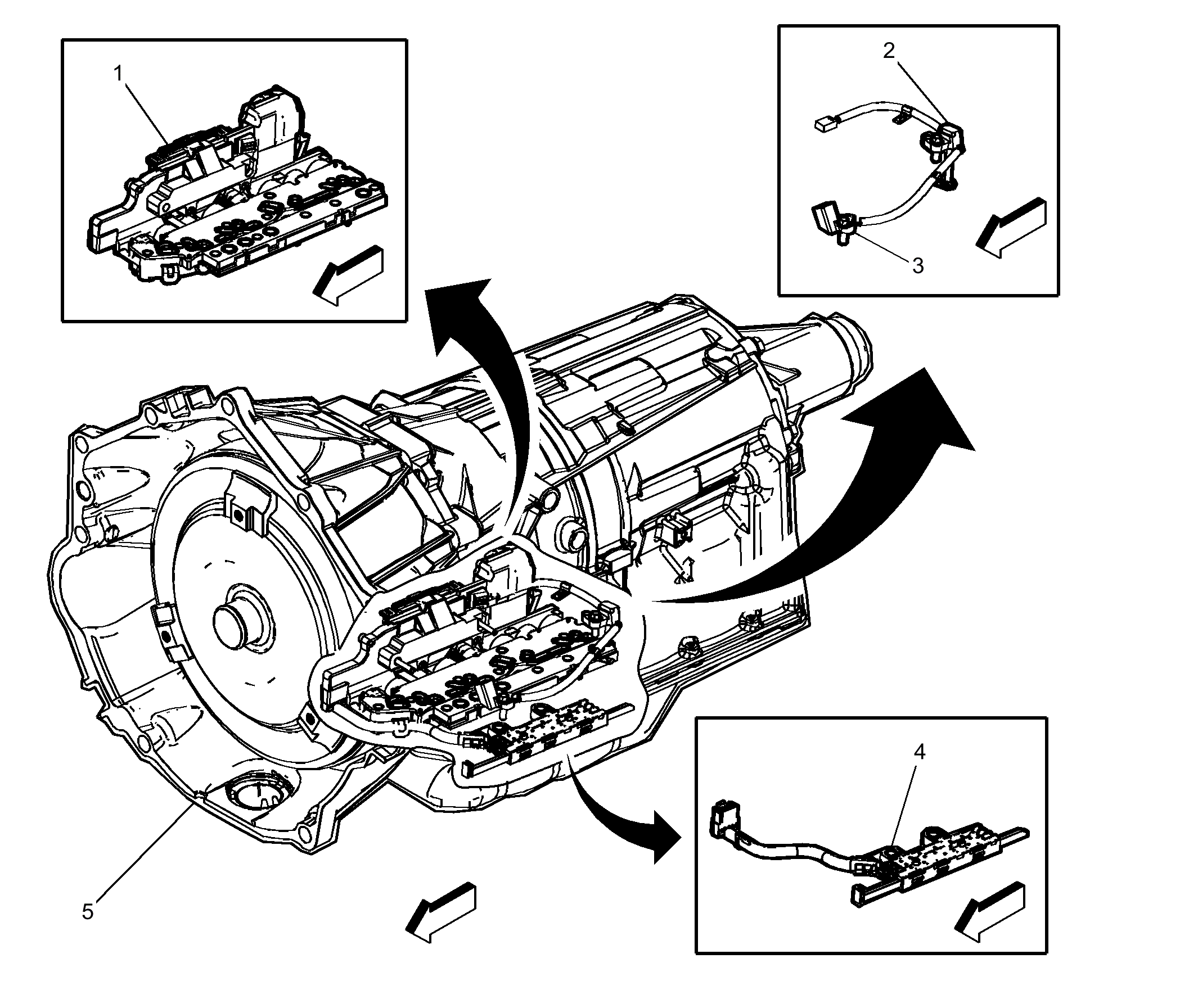

Transmission Electronic Components (MYB, MYC or MYD)
Transmission Electronic Components (MYB, MYC or MYD)
| Items |
|---|
| 1: Q8 Control Solenoid Valve Assembly Q8 Control Solenoid Valve Assembly X1 (MYB, MYC or MYD)Q8 Control Solenoid Valve Assembly X2 (MYB, MYC or MYD)Q8 Control Solenoid Valve Assembly X3 (MYB, MYC or MYD) |
| 2: B14A Transmission Output Shaft Speed Sensor |
| 3: B14C Transmission Input Shaft Speed Sensor |
| 4: B15 Transmission Internal Mode Switch |
| 5: T12 Automatic Transmission Assembly |
