Front of the Engine Compartment Components (TR7 - Headlamp Leveling System)

Front of the Engine Compartment Components (TR7 - Headlamp Leveling System)

Items
1:  K28 Headlamp Leveling Control Module (TR7) K28 Headlamp Leveling Control Module (TR7)
2:  M29L Headlamp Leveling Actuator - Left (TR7) M29L Headlamp Leveling Actuator - Left (TR7)
3:  M29R Headlamp Leveling Actuator - Right (TR7) M29R Headlamp Leveling Actuator - Right (TR7)

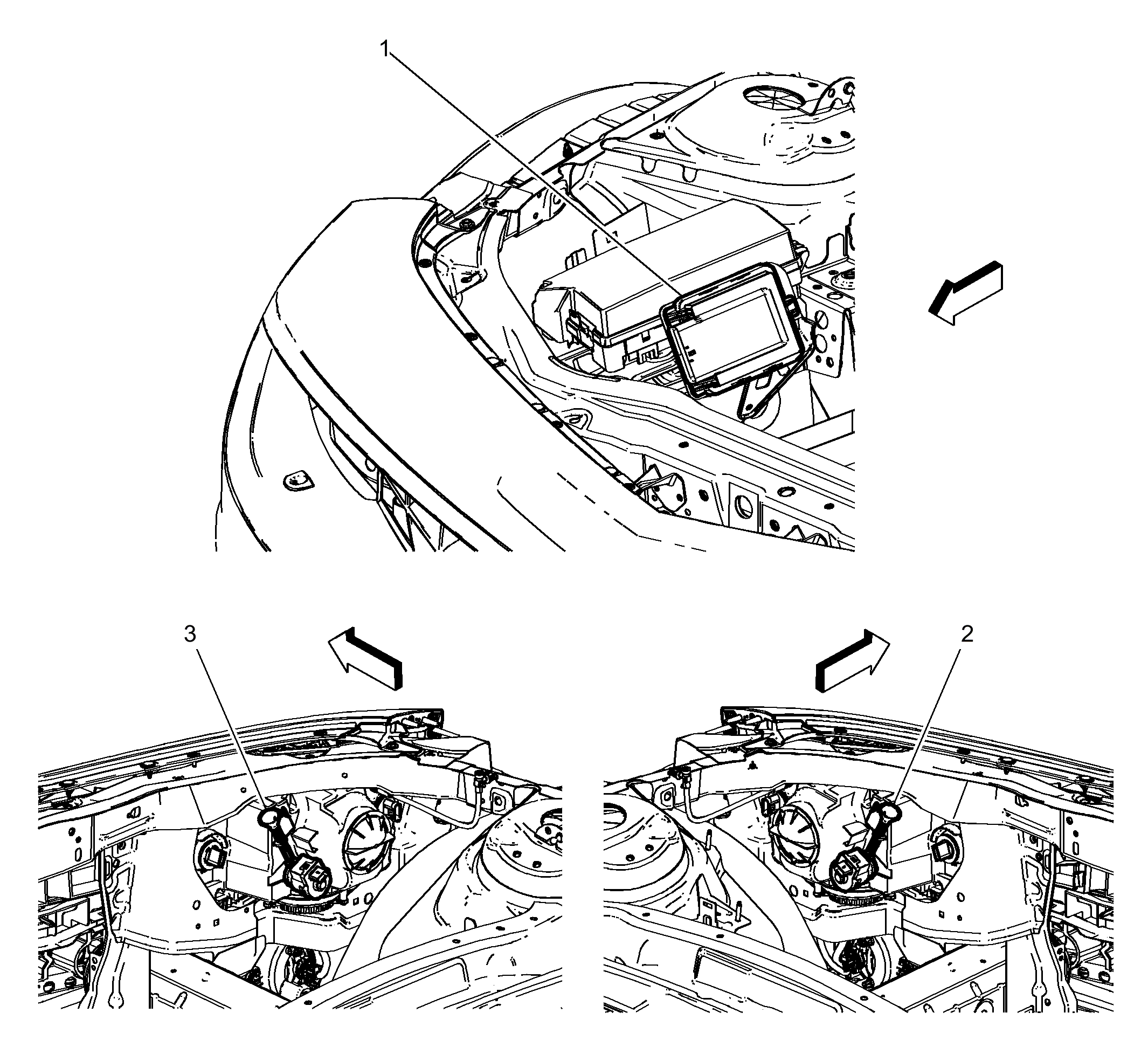

Fig 1: Front of the Engine Compartment Components (TR7 - Headlamp Leveling System)
GM2535672Courtesy of GENERAL MOTORS COMPANY
