Under the Center Console Automatic- Transmission Shift Lever Components (MYB or MYC)

Under the Center Console Automatic- Transmission Shift Lever Components (MYB or MYC)

Component Name	Callout
X301	1
P2 Transmission Shift Lever Position Indicator	2
B81B Park Position Switch	3
M7 Transmission Shift Lock Control Solenoid Actuator	4

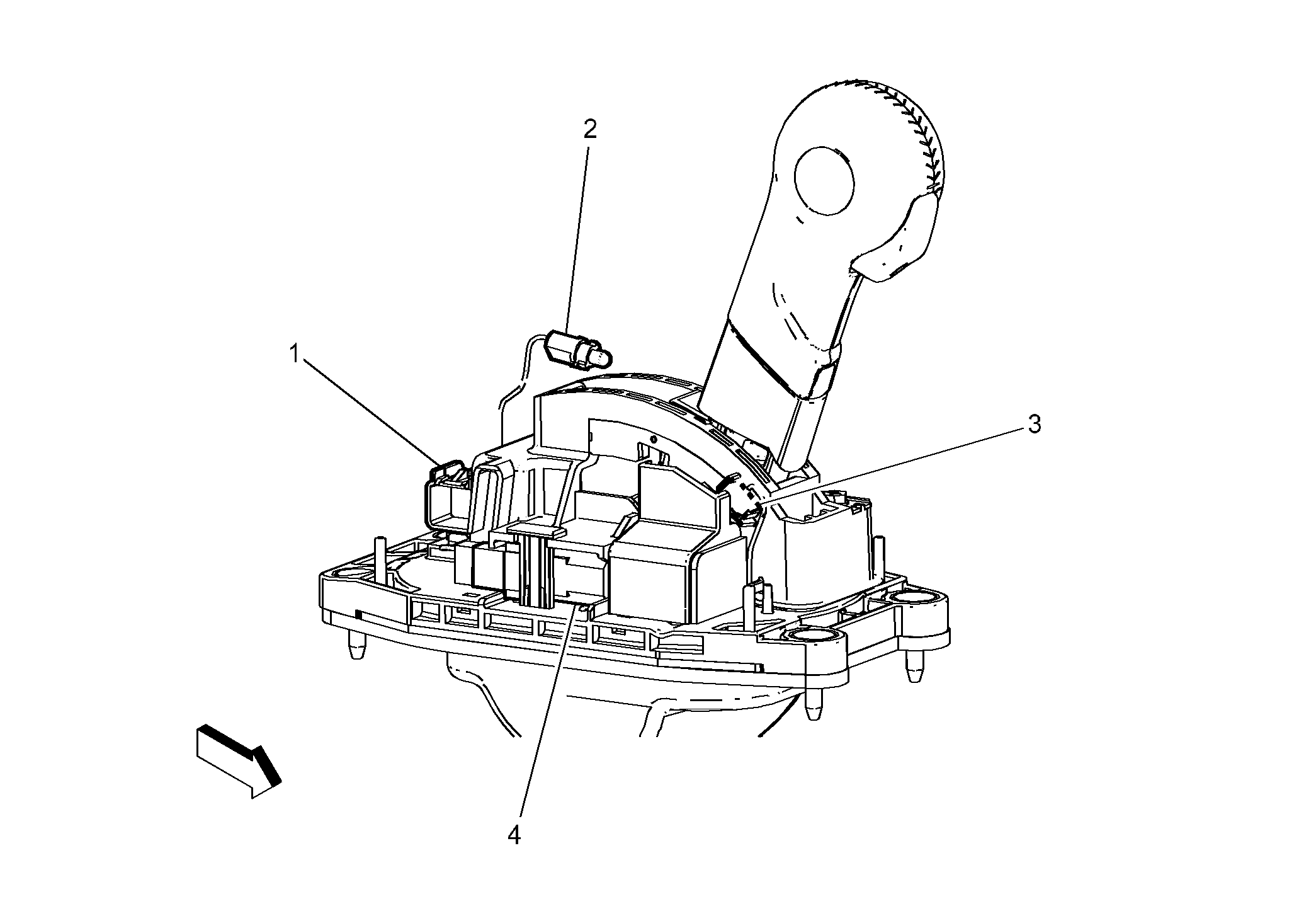

Fig 1: Under the Center Console Automatic - Transmission Shift Lever Components (MYB or MYC)

Courtesy of GENERAL MOTORS COMPANY
