Windshield Wiper Transmission Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

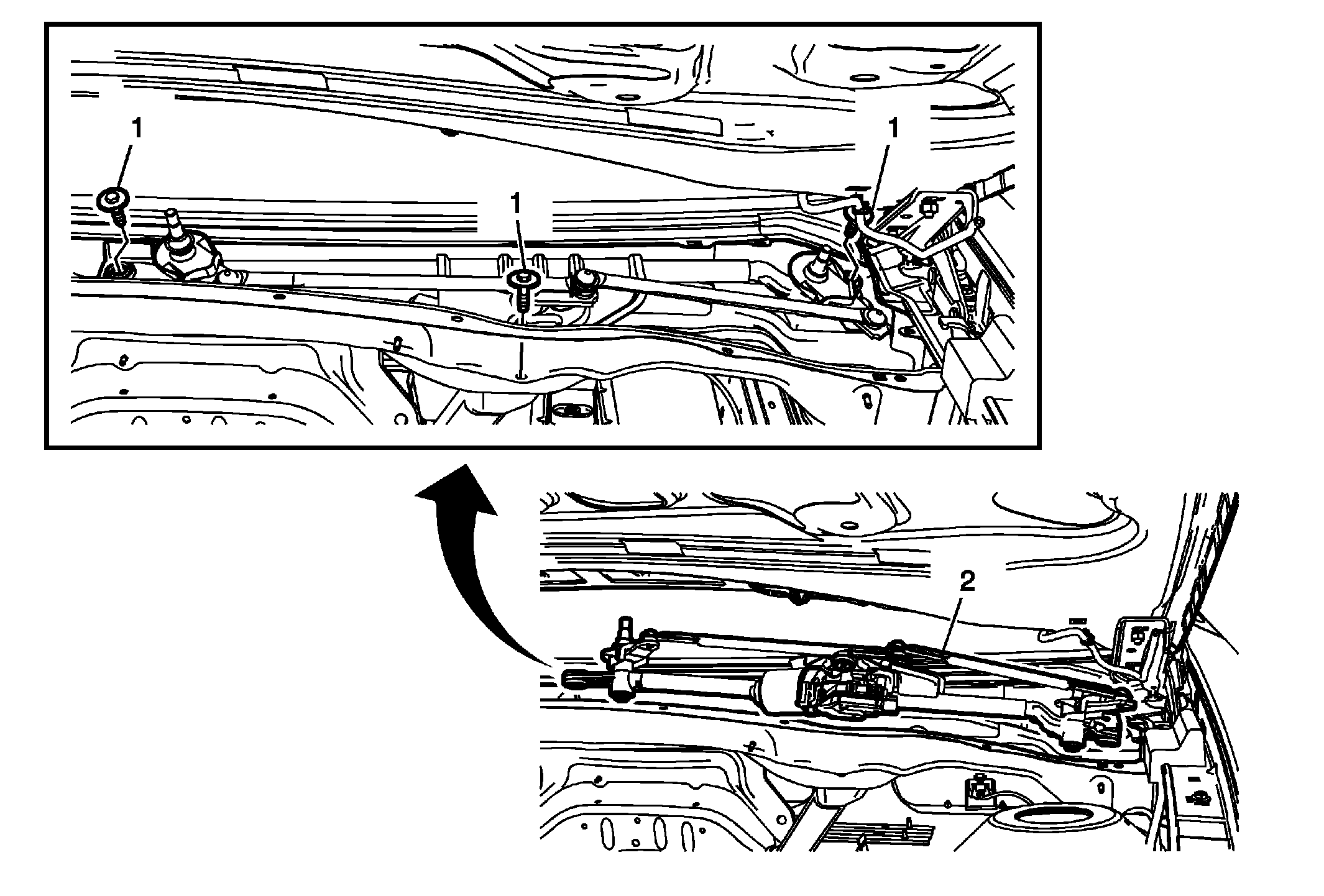

Fig 1: Windshield Wiper Transmission And Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the air inlet grille panel assembly. Refer to Air Inlet Grille Panel Replacement .
1	Windshield Wiper Transmission Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 5.5 N.m (49 lb in)
2	Windshield Wiper Transmission Procedure Lift the front edge of the wiper transmission out from the plenum. Disconnect the wiper motor electrical connector. Remove the wiper transmission assembly from the vehicle. Remove the windshield wiper motor from the transmission. Refer to Windshield Wiper Motor Replacement .

Callout

Component Name

Preliminary Procedure:
Remove the air inlet grille panel assembly. Refer to Air Inlet Grille Panel Replacement .

Windshield Wiper Transmission Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 5.5 N.m (49 lb in)

Windshield Wiper Transmission

Procedure

Lift the front edge of the wiper transmission out from the plenum.
Disconnect the wiper motor electrical connector.
Remove the wiper transmission assembly from the vehicle.
Remove the windshield wiper motor from the transmission. Refer to Windshield Wiper Motor Replacement .
