Inflatable Restraint Front Passenger Presence System (PPS) Module

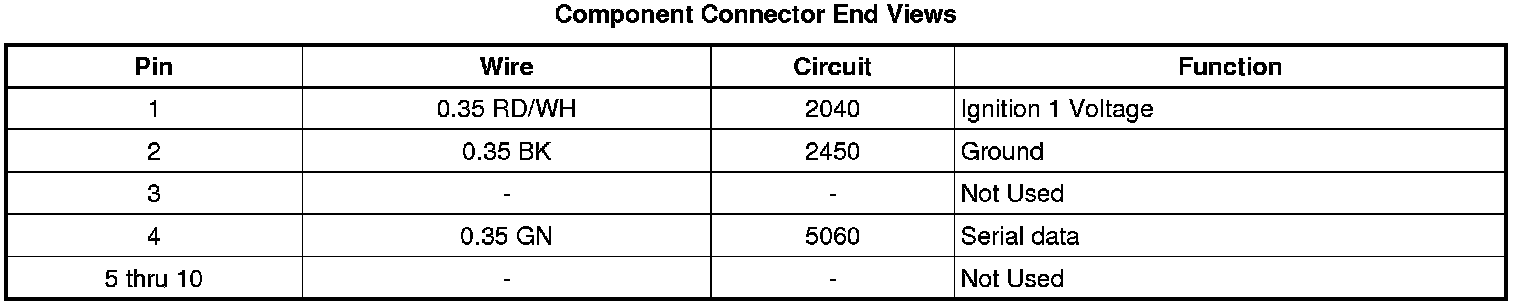

Component Connector End Views

B60 Inflatable Restraint Front Passenger Presence System (PPS) Module
