Seat Heating Control Module (KA1) X1

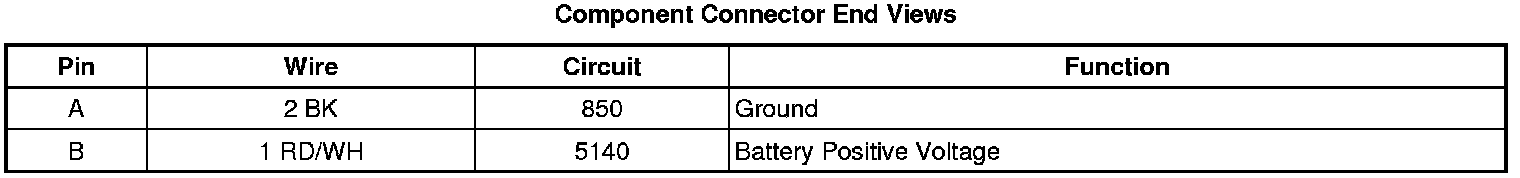

Component Connector End Views

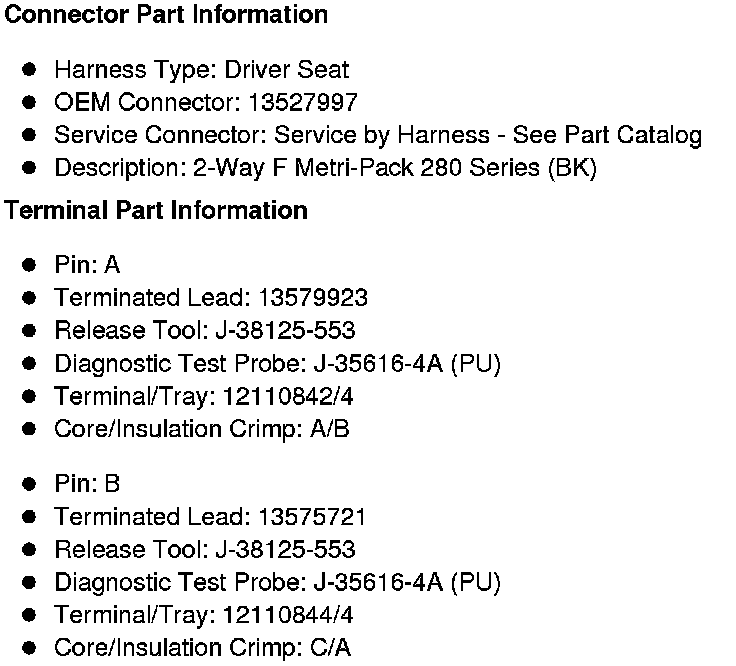

K29 Seat Heating Control Module (KA1) X1
