Removal Procedure

  1. Remove the rear wheel (passenger side). Refer to Tire and Wheel Removal and Installation .
  2. Remove the rear wheel liner (passenger side). Refer to Rear Wheelhouse Liner Replacement .
  3. Disconnect the electrical connector.

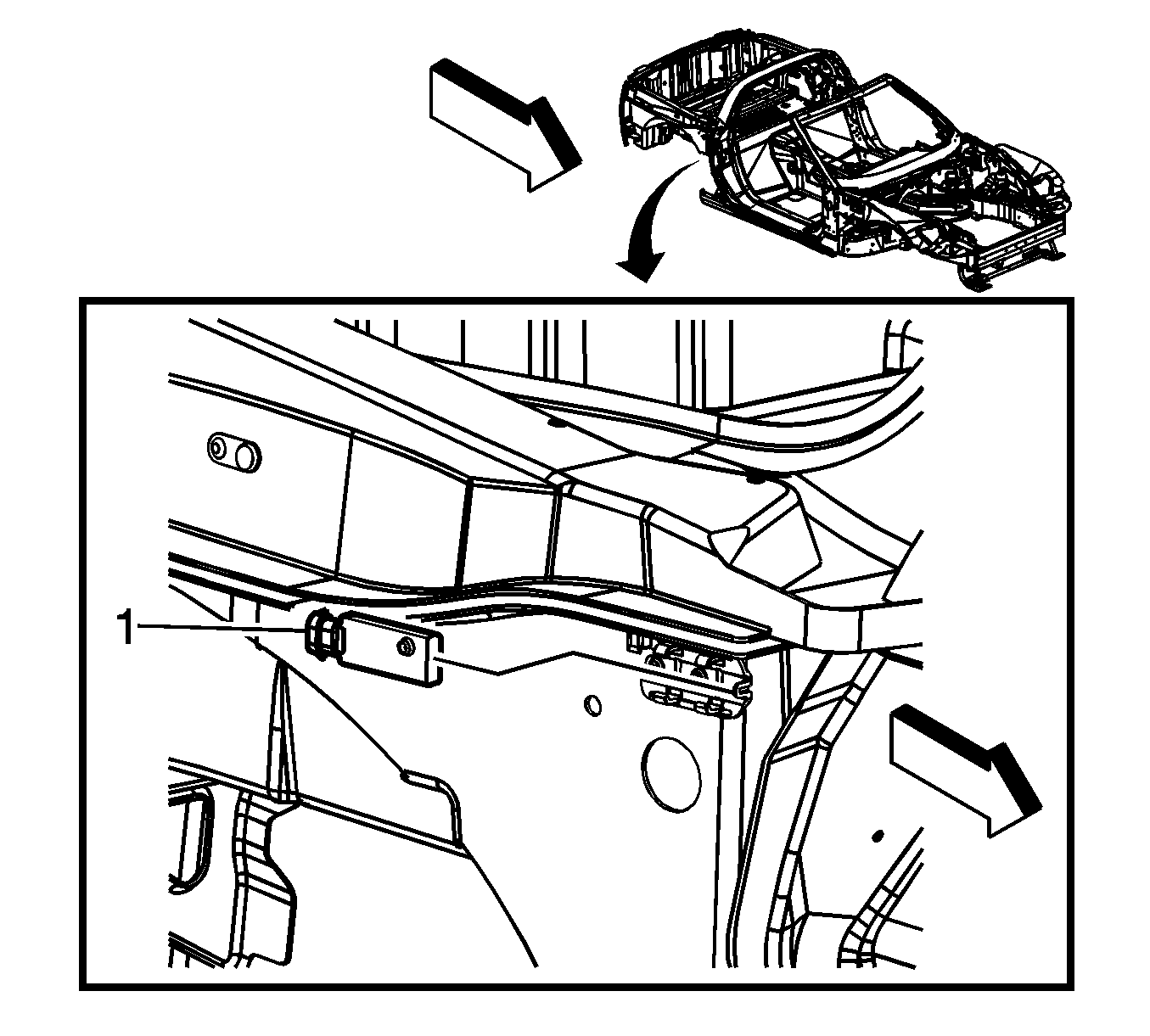

    4. Fig 1: Identifying Right Side Ignition Lock Key Transmitter Antenna Assembly
    GM2047443Courtesy of GENERAL MOTORS COMPANY
  4. Pull on the antenna to disengage the antenna from the retaining bracket .
