Digital Radio Receiver Replacement (Coupe)

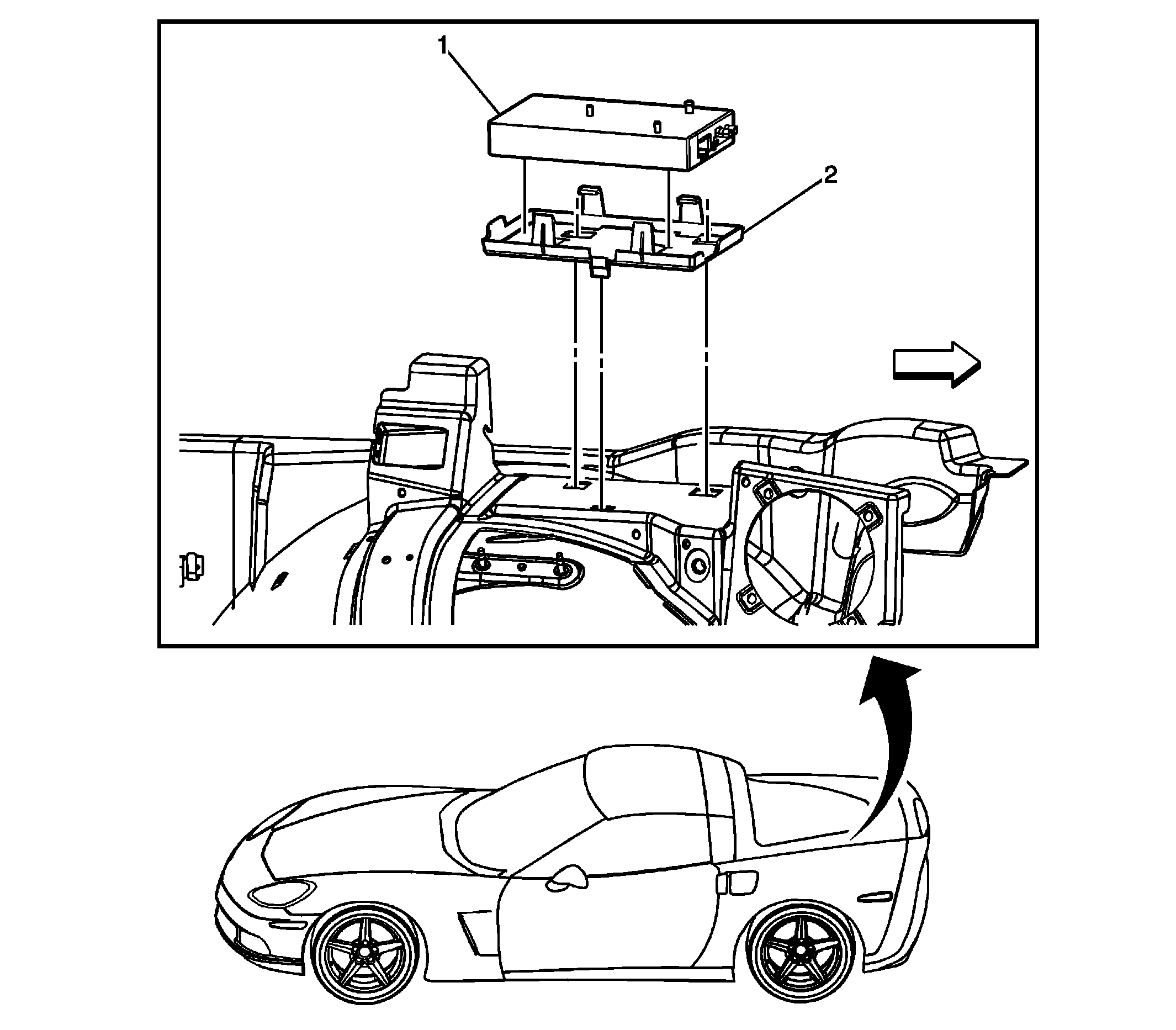

Fig 1: Digital Radio Receiver (Coupe)
GM1504006Courtesy of GENERAL MOTORS COMPANY
Digital Radio Receiver Replacement (Coupe)

Callout Component Name
Preliminary Procedure
Remove the rear compartment trim panel. Refer to Rear Compartment Rear Center Trim Panel Carpet Replacement .
1 Digital Radio Receiver
Refer to Control Module References for programming and setup information.
TIP:  Disconnect the electrical connectors.
2 Digital Radio Receiver Bracket
